KSB Centrifugal Pump Lexicon –

From A to Z

Double volute

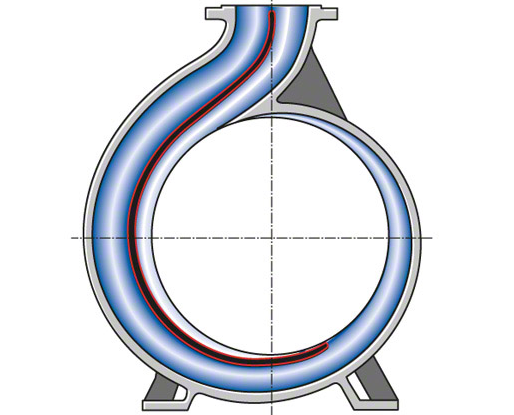

To balance radial thrust on volute casing pumps a double volute is installed instead of a single volute. This volute type consists of two partial volutes which have the same effect and are arranged at an offset of 180° ending in the same discharge nozzle. See Fig. 1 Double volute
