Carnot's shock loss

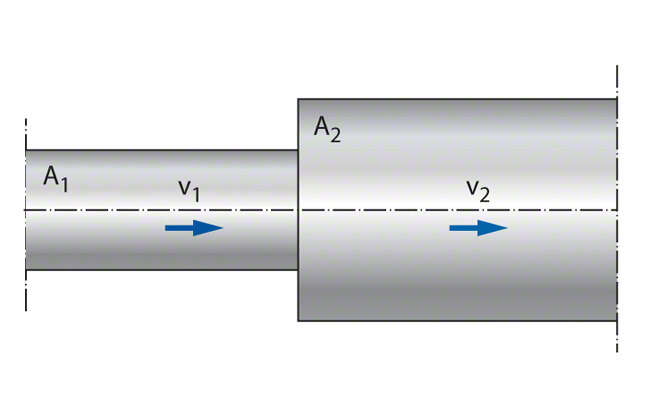

If the pipe diameter or flow cross-section suddenly widens from A1 to A2, the fluid does not enter the wider area as a constant jet with the velocity v1 but mixes with the surrounding fluid, accompanied by marked turbulence and vortex formation. At the end of a transition zone the fluid once again forms a uniform flow at a lower velocity v2. See Fig. 1 Carnot's shock loss

The pressure loss (Δp) due to mixing is called Carnot's shock loss and can be derived from the principle of conservation of momentum:

ρ    Density of the fluid handled


See Fig. 1 Fluid mechanics
