Fluid mechanics

Fluid mechanics is the science of liquid and gaseous media in motion (see Fluid). Within the context of hydrodynamics and partially aerodynamics, it investigates fluid flows which exhibit negligible changes in density (incompressible fluids) and, in the field of gas dynamics, gases where compressibility must be taken into account.

Fluid mechanics attempts on the one hand to set up and solve equations describing flow phenomena in theoretical terms, and on the other to present and interpret in a suitable form empirically established principles and relationships regarding certain fluid flow problems.

Depending on the number of coordinates required, a distinction can be drawn between one-, two- and three-dimensional flow phenomena which can be either steady (i.e. independent of time; see Steady flow) or transient (i.e. dependent on time; see Transient flow).

The theory described as "filament of flow" theory of one-dimensional flows deals with flows in a filament of flow limited on all sides by stream lines, and particularly with flows in pipes and closed ducts.

One fundamental equation in fluid mechanics is the continuity equation in differential form:

(assuming incompressible fluids and steady flows)

According to the filament of flow theory, the product of flow cross-section (A) and flow velocity (v) (averaged over the cross-section) remains constant along the filament of flow.

Furthermore, according to the Bernoulli equation the total pressure (p_tot), i.e. the sum of the static pressure (p), dynamic pressure ((ρ / 2) · v²) and elevation term (ρ · g · z), along a filament of flow in a frictionless flow is constant.

ρ   Density of fluid handled
g   Acceleration due to gravity
z   Geodetic altitude

The extension of this equation to flows of viscous fluids between two arbitrarily selected cross-sections (A_x , A_y) of a pump system requires the head losses and pressure changes caused by a pump or a turbine between A_x and A_y to be taken into account:

g         Acceleration due to gravity
H        Head of a pump (H > 0) or head of a turbine (H < 0)
           between the cross-sections A_x and A_y
H_Lx,y    Head loss along the flow path between the cross-sections from A_x to A _y
ζ         Loss coefficient

If real two- and three-dimensional flows travel outside the  boundary layer at a sufficient distance from solid walls and can therefore be considered as quasi-frictionless, they can generally be calculated by applying potential flow methods..

However, finding exact solutions for incompressible flows of viscous fluids by applying the equations of motion (Navier-Stokes equations) is only possible in a few simple cases.

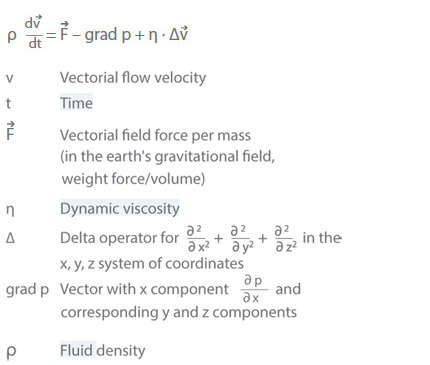

For a homogeneous Newtonian fluid (ρ, η = const.) this results in:

Given sufficiently high Reynolds numbers the general equations of motion for the thin boundary layers present in proximity to solid walls can be greatly simplified and solved by the various methods of the boundary layer theory.
Based on the flow's microstructure, a distinction is made between laminar and turbulent flow.

In the case of incompressible frictionless flow, the general equation of motion is simplified to the so-called Euler equation from which the Bernoulli equation is derived for steady flow.

In centrifugal pump engineering, the principle of conservation of momentum or theorem of momentum plays an important role for incompressible steady flows. It represents the integral form of the Navier-Stokes equations. An example of application is the so-called Carnot shock loss in an incompressible flow through a diffuser with an abrupt increase of cross-section. See Fig. 1 Fluid mechanics

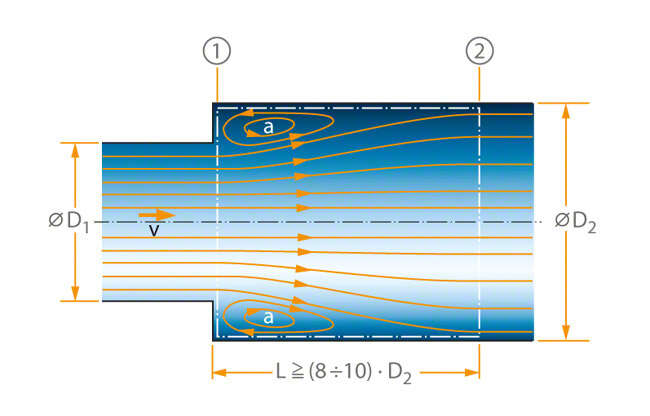

The diffuser has circular cross-sections. At the abrupt transition from the smaller cross-section (A₁ = π · D₁²/ 4) to the larger cross-section (A₂ = π · D₂²/ 4), a ring-shaped flow separation (a) develops as a result of the inertia of the flowing mass (wake or dead water). The flow only reattaches to the wall after a travel path (L) equal to at least 8 to 10 times the diameter D₂.

The principle of conservation of momentum is to be applied to the outside forces acting in the direction of the flow velocity (v) on the fluid enclosed in the defined space (depicted in the illustration by the dash-dotted lines). The momentum forces (F_J) should constantly be directed toward the enclosed fluid.

Other forces involved are the pressure (F_p) and friction (F_v) forces.

p     Static pressure
A_p   Cross-section area on which the static pressure acts
A_v   Internal pipe wall on which the wall shear stress acts
τ      Wall shear stress (wall friction)

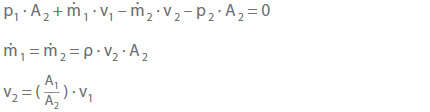

The wake or dead water flow (see Boundary layer)at the pipe wall causes the friction forces (F_v) to be negligible. Therefore, according to the principle of conservation of momentum, the equilibrium of forces in the direction of the flow velocity (v) (positive direction) can be expressed as:

According to the principle of conservation of momentum, the difference in static pressure becomes:

According to the Bernoulli equation, the following applies to a filament of flow, taking into account the pressure loss (H_L1,2):

If (p₂ – p₁) is now inserted as derived from the principle of conservation of momentum, the following applies with z₁ = z₂:

Because of the similarity between the above equation derived from the principle of conservation of momentum and the equation for the loss of energy in a straight-line inelastic impact of two bodies, the head loss obtained from the last-mentioned equation has been named Carnot shock loss in fluid mechanics.

A further important application of the principle of conservation of momentum leads to the so-called fundamental equation of turbomachinery: If an impeller's vanes (see Vane) are subdivided into impeller elements, where one element (subscript El) lies between two adjoining flow surfaces (see Flow line) of the relative flow in the impeller (see Relative velocity) the specific energy transmitted by the vanes of the impeller element (Y_El) is:

u₁     Circumferential speed of impeller at inlet (relating to the characteristic stream line of the
         impeller element)
u₂     Circumferential speed of the impeller at outlet (relating to the same stream line)
v_1u    Tangential component of absolute velocity (v) at impeller inlet (relating to the stream line pertaining to u₁ and u₂)
v_2u    Tangential component of absolute velocity (v) at impeller outlet (relating to the same stream line)

The fundamental equation of turbomachinery applies to any type of impeller or runner in centrifugal pumps and turbines.

The equation is independent of the density of the fluid handled and can also be applied to applications where the fluid's density changes during its passage through the impeller, e.g. to gaseous fluids, steam and vapours.

Another method for expressing an impeller's specific energy is:

w    Relative velocity
u    Circumferential speed
v    Absolute velocity

In this equation the first two terms can be interpreted as the difference in static pressure energy across the impeller. The energy difference resulting from the components of absolute velocity is only available as velocity energy and therefore must be converted into pressure energy in the diffuser elements or diffusers.

The specific energy generated by the entire impeller (Y) is established by averaging the mass flow rate for all impeller elements. The following relationship exists between the specific energy of the impeller (Y) and the pump power output (P_Q):

Q   Flow rate through the impeller
ρ    Density of fluid handled
g    Acceleration due to gravity
H    Head

ṁ   Mass flow through the impeller

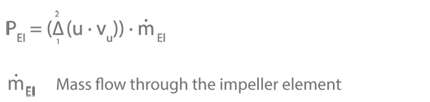

If this is applied to the impeller element, the specific energy of the impeller element (P_El) is:

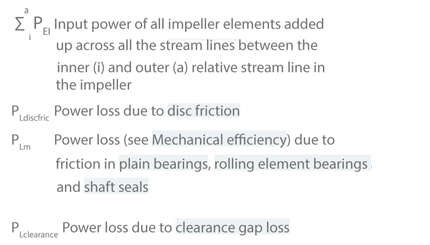

Following the addition of the power losses, the centrifugal pump's input power (P) is:
