Elbow casing pump

An elbow casing pump is a propeller pump, whose diffuser discharges into an elbow (casing) rather than into a coaxial column pipe. See Fig. 1 Elbow casing pump

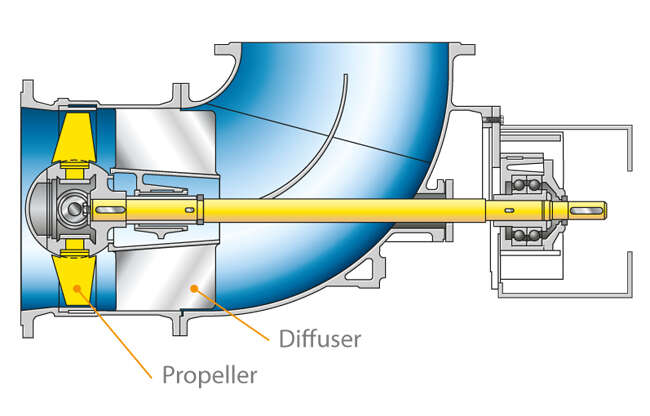

Fig. 1 Elbow casing pump: Elbow casing pump (also without diffuser for both flow directions), with adjustable blades
