Irrigation pumps

Pumping efficiently: Versatile irrigation pumps by KSB

Wherever water has to be pumped efficiently, KSB products are used. Whether wet-installed in a well or rainwater storage tank, or dry-installed for irrigating gardens or for other applications – we have got the right product for you.

A comparison of our irrigation pumps

Depending on the level of cleanliness of the fluid to be handled, irrigation pumps are operated in washing plants, spray irrigation systems or drinking water systems.

UPAIXOMovitec

Characteristic

Single pump

Submersible borehole pump

In-line pump

Flow rate Q

≤ 150 m3/h≤ 8 m3/h≤ 160 m3/h

Head H

≤ 300 m

≤ 65 m

≤ 160 m

Power P

< 22 kW

550 – 1500 W

< 22 kW

Voltage V

3 ~ 400V

1 ~ 230V (shockproof plug) or 3 ~ 400V

3 ~ 400V --- 1 ~ 230V (optional)

Variable speed system

No

No

Optional: PumpDrive

Fluid handled

River, lake and groundwater

River, lake and groundwater

Drinking water, clean water

Automation

UPA Control

Controlmatic E automatic control unit

Optional: PumpDrive

UPA C 100

UPA C 100

Multistage centrifugal pump in ring-section design made of stainless steel for well diameters of 100 mm (4 inches) and above, available with single-phase AC motor or three-phase motor with motor lead.

UPA C 150

UPA C 150

All-stainless steel single-stage or multistage centrifugal pump in ring-section design, suitable for vertical or horizontal installation, for well diameters of 150 mm (6 inches) and above.

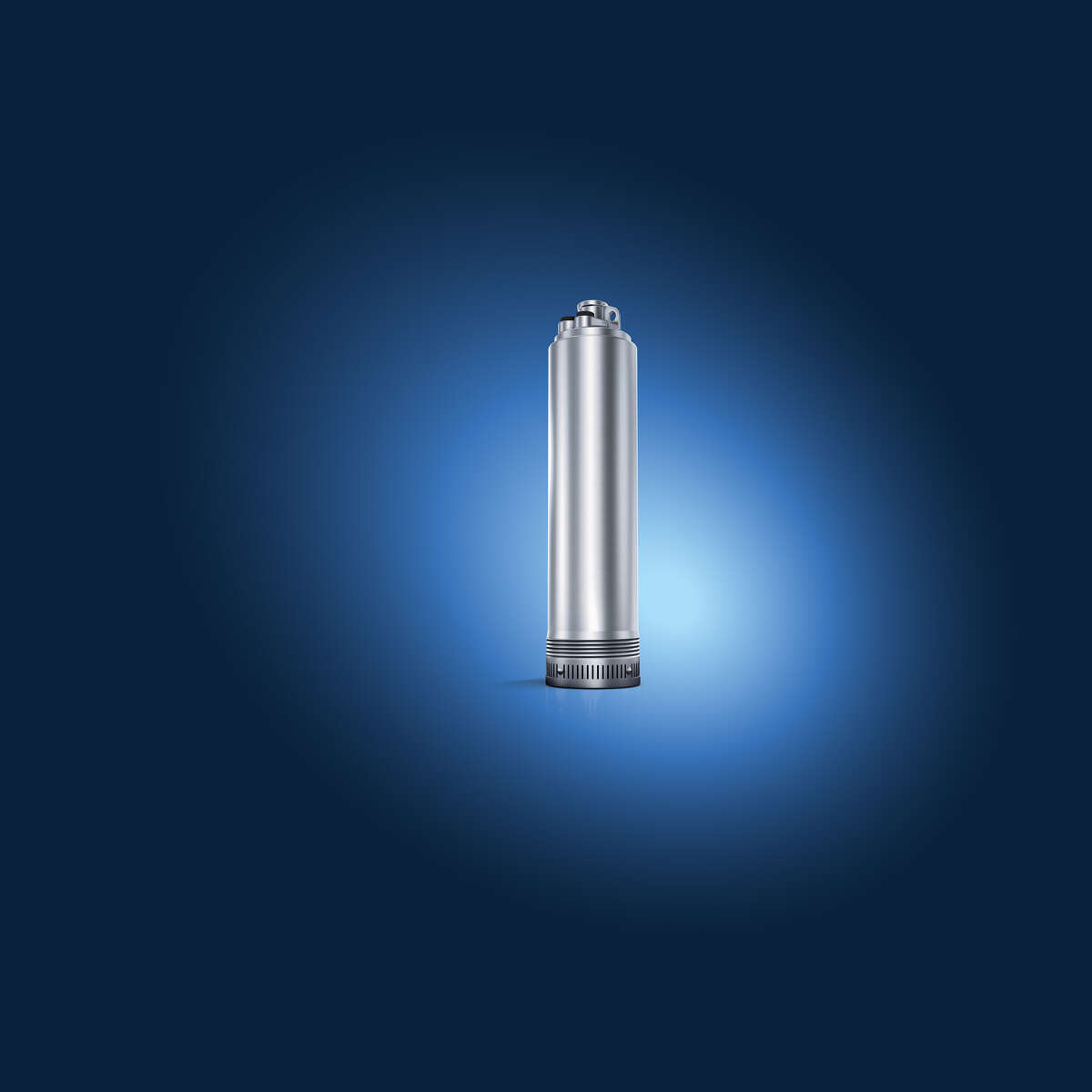

Ixo N

Ixo N

Multistage close-coupled centrifugal pump for fully or partly submerged operation (min. immersion depth 0.1 m), with low-level inlet, suction strainer with a max. mesh width of 2.0 mm.

Ixo Pro

Ixo Pro

Multistage submersible borehole pump with integrated pressure switch, flow sensor and lift check valve. Electronic dry running protection with four consecutive start-up attempts; integrated capacitor. 15-metre H07 RN-F power cable with shockproof plug included.

Movitec

Movitec

Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
