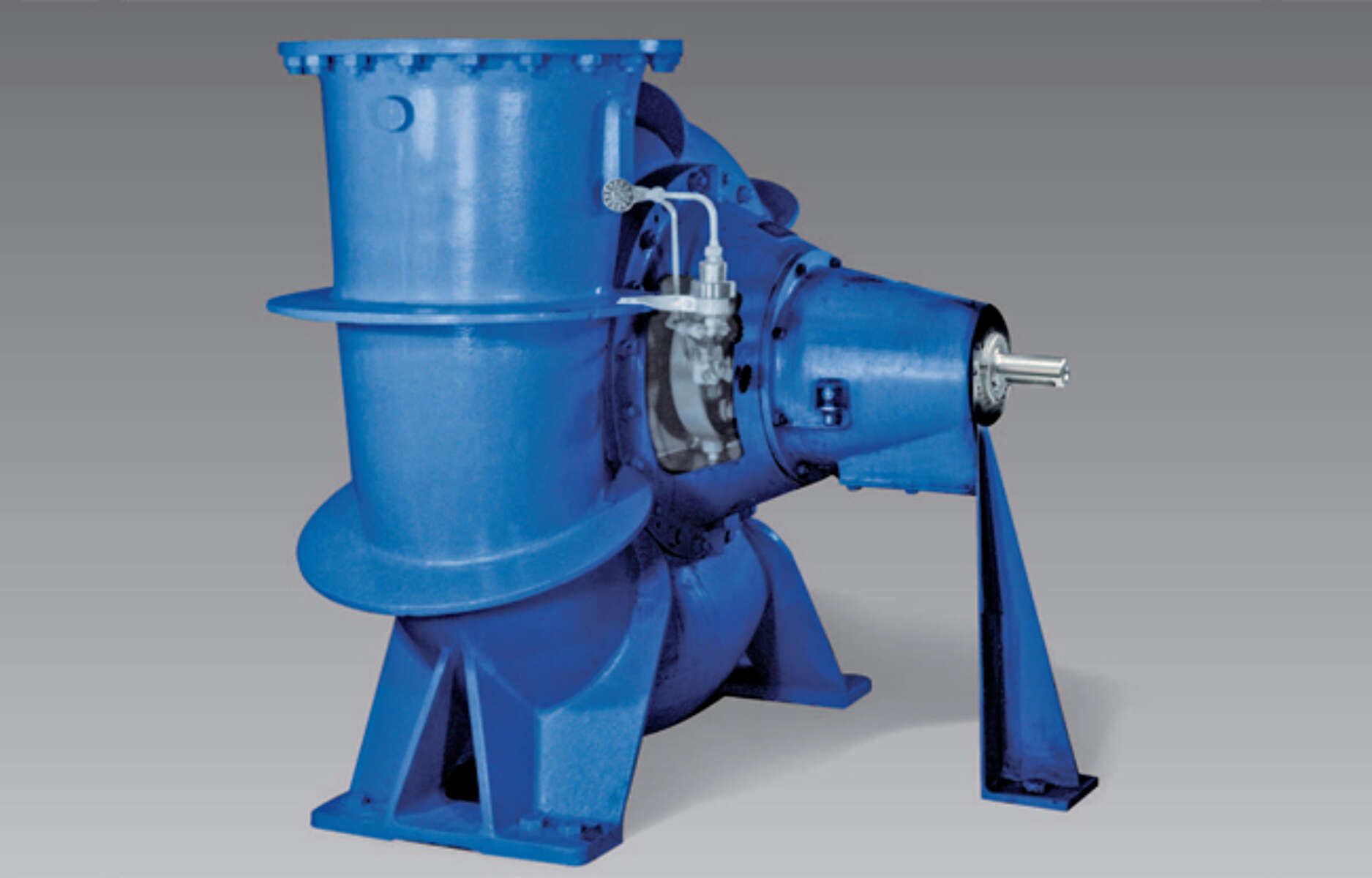

Product Introduction SPNFN
Horizontally or vertically mounted, single stage and single suction volute casing pump
Function:
Essential service water pump
Description:
Horizontal or vertical, single stage, single suction, volute casing pump. Pre-lubricated, grease-filled antifriction bearing, Non-clog high efficiency impeller, variable shaft seal.
Application:
Essential service water supply in nuclear power plants.
Overview of technical date
Size | Up to DN 1600 |
Capacity | Up to 28. 800 m³/h |
Head | Up to 65 m |
Operating pressure | Up to 10 bar |
Temperature | Up to 70°C |
Speed | Up to 1,500 min-1 |
Higher ratings on request |
