Product Introduction RER

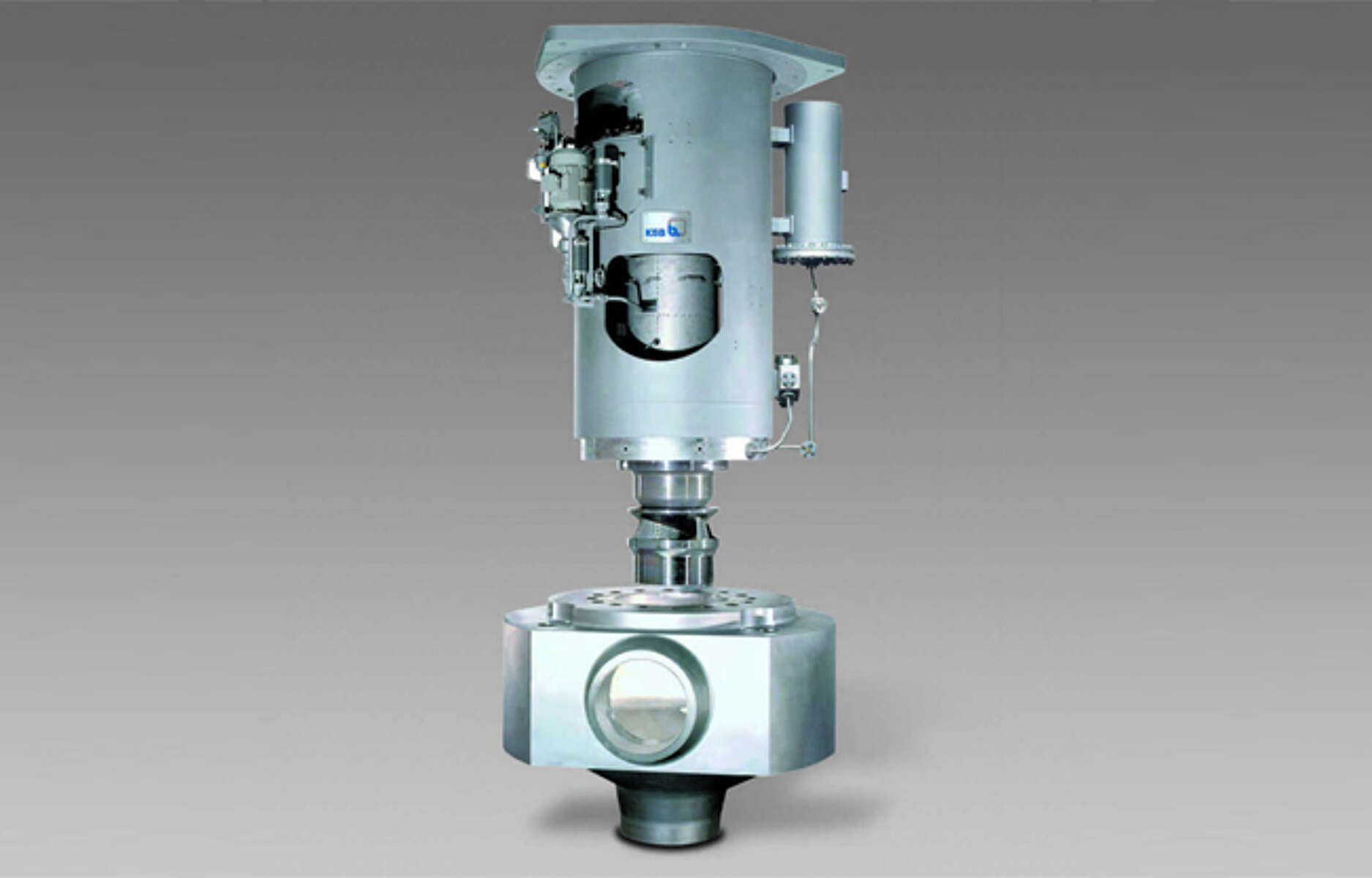

Reactor coolant pump for pressurized water reactor
Function
Reactor coolant pump.
Design
Vertical, single-stage reactor coolant pump RCP with forged annular casing plated on the inside, with diffuser, either with own pump thrust bearing or supported by motor bearing.
Applications
Reactor coolant recirculation in nuclear power plants (PWR).
Overview of technical data
| Type of bearing | Plain bearings |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Max. permissible fluid temperature | 350 °C |
| Standard | ASME Sect. III; KTA |
| Maximum head | 140 m |
| Installation position | Vertical |
| Shaft seal type | Mechanical seal; Hydrodynamic seal |
| Main applications | Energy |
| Maximum discharge-side pressure | 175 bar |
| Maximum drive rating | 10. 000 kW |
| Maximum flow rate | 40. 000 m³/h |
| Maximum speed of rotation | 1. 800 1/min |
