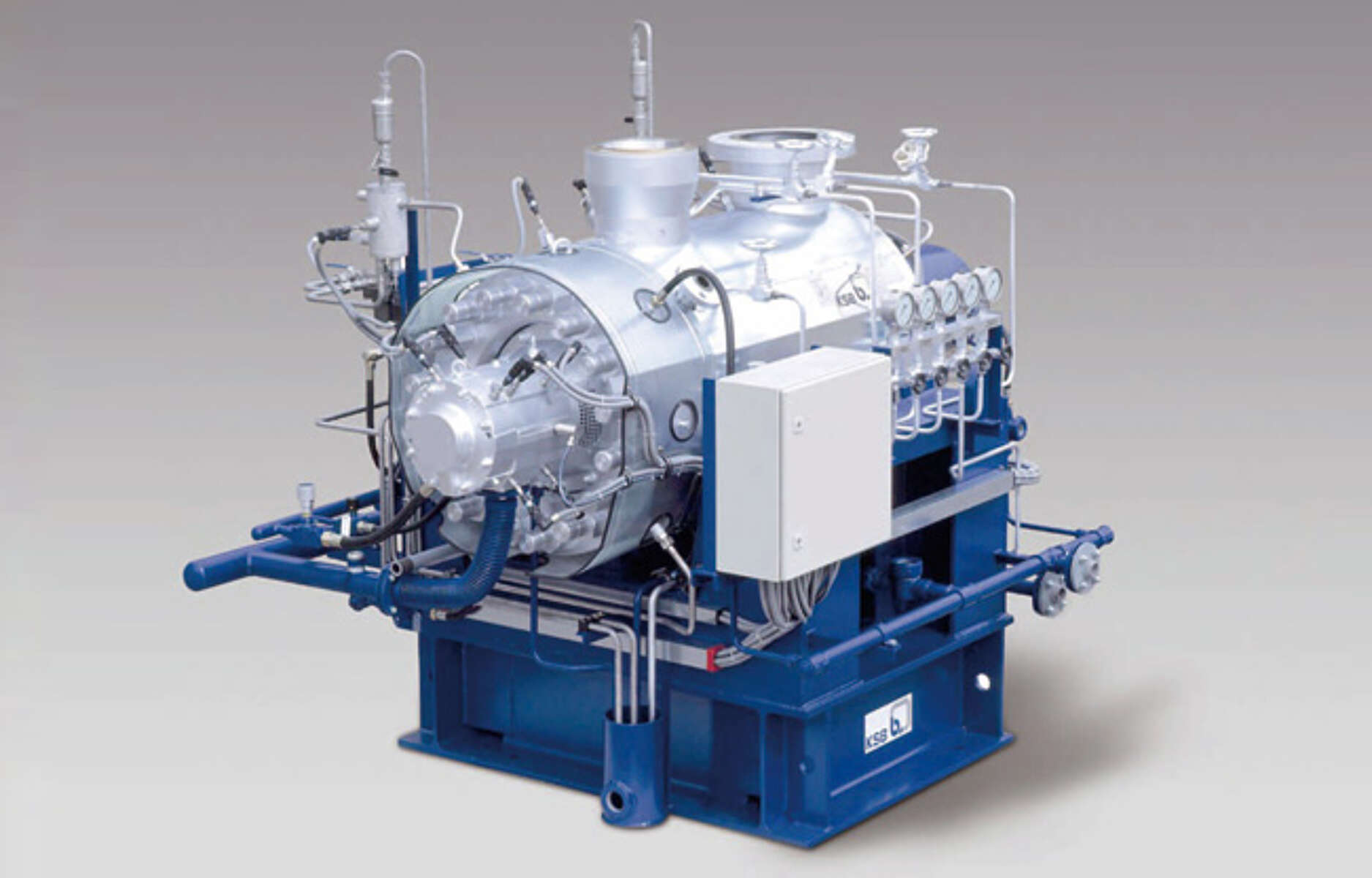

Horizontal, multistage high-pressure barrel-type pump

Design
Horizontal, high-pressure barrel-type pump with radial impellers, single- and double-entry, multistage, with flanges / weld end nozzles to DIN and ANSI.

Applications
Handling of feed water and condensate in power stations and industrial facilities, generation of pressurized water.

Overview of technical data

Barrel casingYes
Type of bearingPlain bearings
Casing partitionRadially split
Drive frequency50 Hz / 60 Hz
Type of driveElectric motor, turbine
Drive voltageLow voltage, high voltage
Type of first impellerSingle entry
No. of impeller entriesSingle / double entry
Other impeller typesClosed / dadial
Type of installationLong- coupled
Type of couplingGeared variable speed coupling; gear; variable speed coupling; direct
Type of lubricationGrease / oil / pressurized oil lubrication
Grease / Oil / Pressurized oil lubrication200°C
Nozzle positionVariable
Maximum rated pressure (discharge)PN160; PN250; PN320; PN400
Pull-out designYes
Pump set locationDry installed
Suction characteristicsNon- priming
Type of connectionFlange, weld ends
Type of discharge casingAnnular casing
Type of stage casingStage casing with diffuser
Type of suction casingAnnular casing
eClass assignment36410000; 36410101; 36410100
Maximum head4. 000 m
Installation positionHorizontal
Shaft seal typeMechanical seal
Main applicationsEnergy; industry and process engineering
Casing materialCarbon steel; chrome steel
Maximum discharge-side pressure400 bar
Maximum suction pressure30 bar
Type of installationStationary
Maximum flow rate1. 300 m³/h
Maximum speed of rotation6. 750 1/min
