Product Introduction Omega

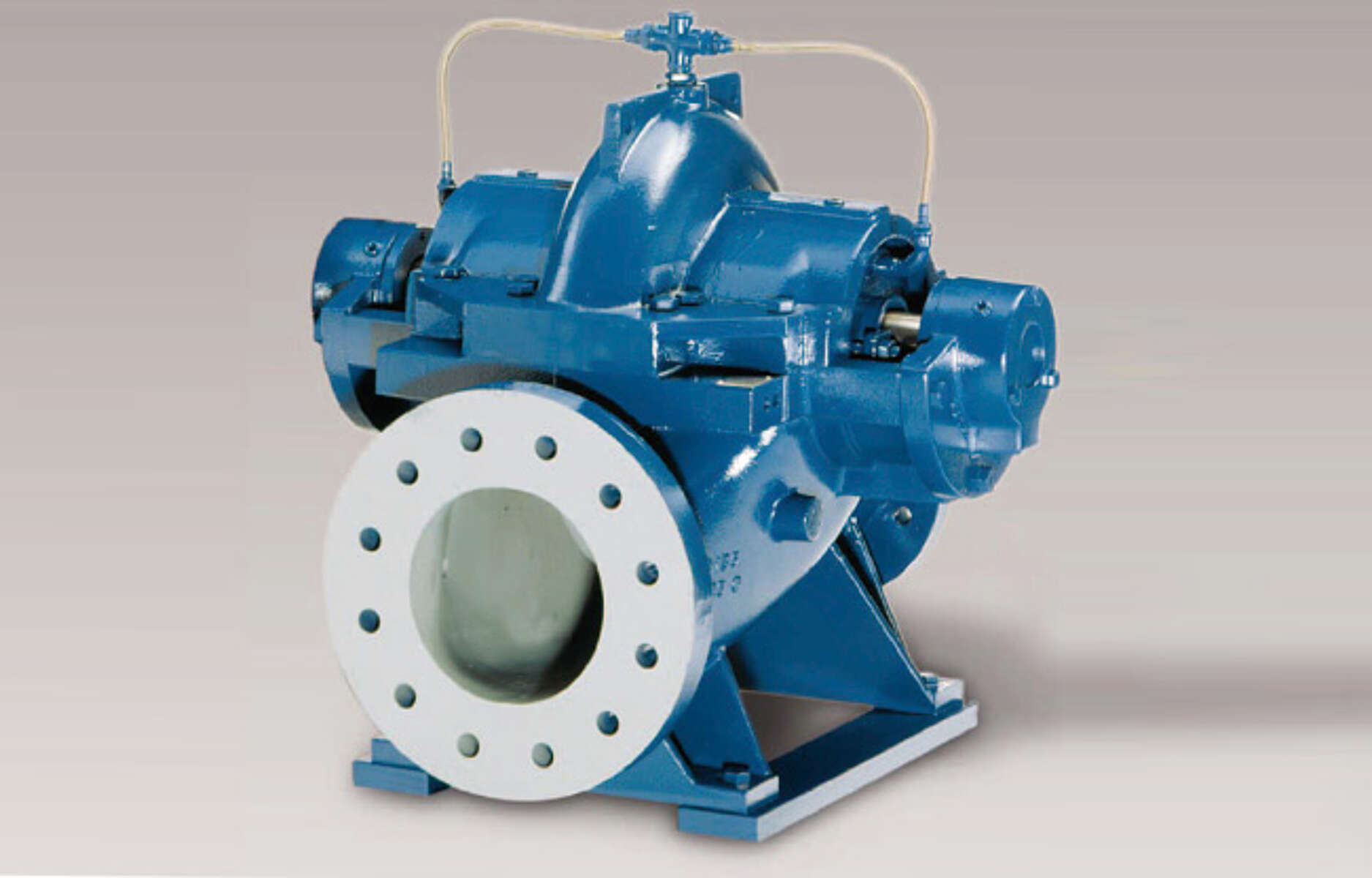

Axially split volute casing pump

Design
Single-stage, axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, ISO, BS or ANSI.

Applications
Power stations, handling of raw, pure and service water as well as seawater in water treatment plants, irrigation and drainage pumping stations, fire-fighting systems, shipbuilding and the petrochemical industry.

Overview of technical data

Type of bearingRolling element and plain bearings
Casing partitionAxially split
Drive frequency50 Hz / 60 Hz
Type of driveElectric motor
Drive voltageLow voltage, high voltage
No. of impeller entriesDouble entry
Impeller material (EN standard)Bronze, chrome steel, duplex SS, super duplex SS
Type of installationLong- coupled
Type of couplingDirect; gear
Type of lubricationGrease / oil lubrication
Max. permissible fluid temperature80 °C
Nozzle positionIn line
Maximum rated pressure (discharge)PN 10, PN 16, PN 25
Pump set locationDry installed
Shaft material (EN standard)13 % Chrome steel, duplex SS
Suction characteristicsNon- priming
Suitable for drinking waterYes
Type of casingVolute casing
Type of impellerClosed; radial
Type of connectionFlange
Casing material (EN standard)Gast iron
eClass assignment36410103; 36410100;36410101;36410000
Maximum head170 m
Minimum head7 m
Installation positionHorizontal or vertical
Shaft seal typeGland packing; mechanical seal
Main applicationsIndustry and process engineering; water; energy; building services; mining / dredges
Casing materialCast iron; duplex steel; cast duplex steel; nodular cast iron
Maximum discharge-side pressure25 bar
Maximum drive rating1. 500 kW
Type of installation 00 Maximum flow rate2. 800 m³/h
Minimum flow rate50 m³/h
Maximum speed of rotation3. 500 1/min
