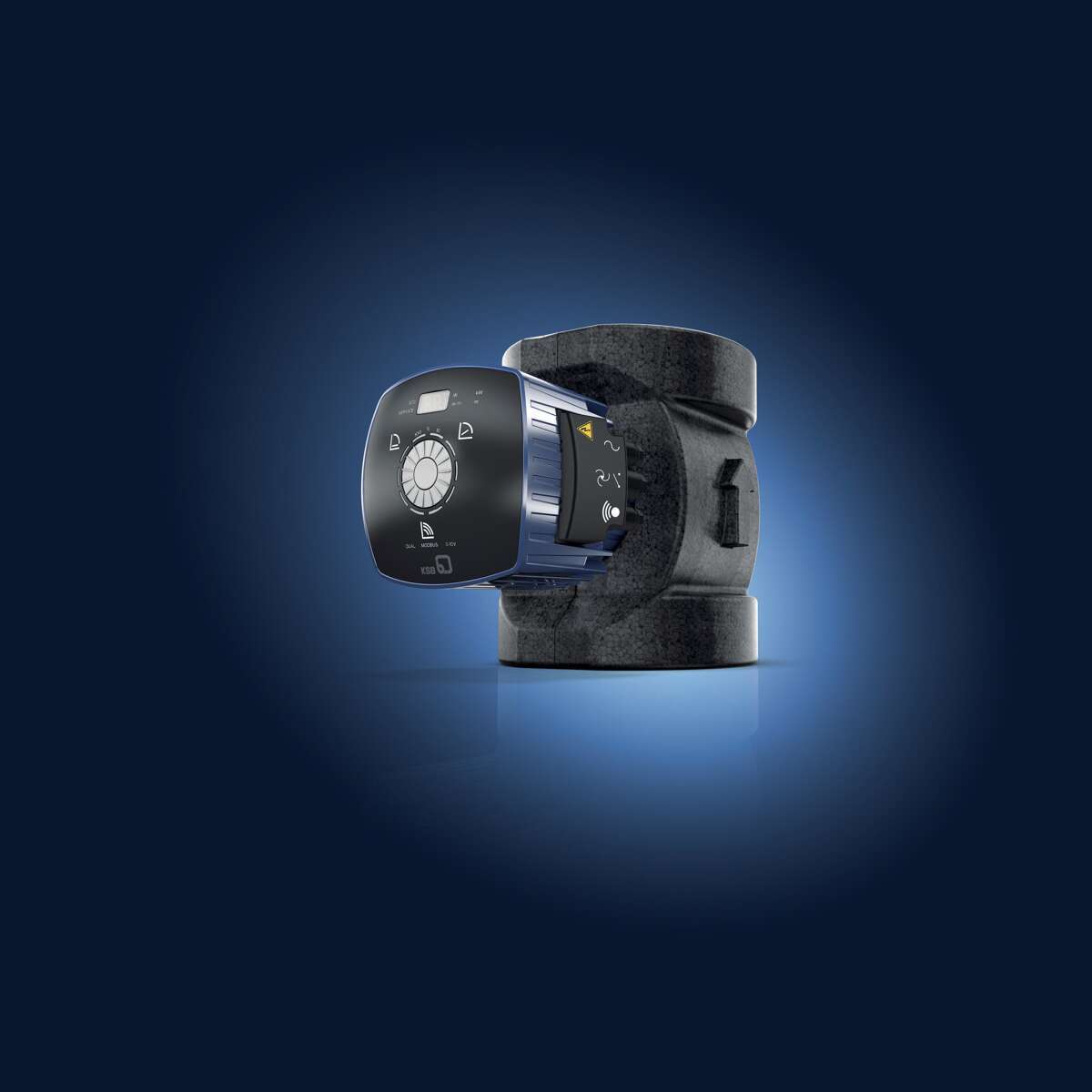

Calio glandless heating circulators with thermal insulation shell

The Calio glandless pump brings more efficiency to the boiler room.

Buildings, whether small or large, for private, public or industrial use, requiring a heating or a drinking water system: KSB's broad portfolio of circulators covers a large application range. All glanded pumps of the Calio family are maintenance-free and highly efficient.

The state-of-the-art circulators of the Calio type series for heating and air-conditioning systems are available in the most diverse of variants. Naturally, all our high-efficiency pumps meet the requirements of the ErP Directive regulations applicable since 2015.

The Calio-Therm type series provides safe and efficient drinking water supply: Regular circulation enables you to enjoy hot water as soon as you open the tap, and it prevents the risk of legionella.

Calio / Calio ZCalio Pro / Calio Pro ZCalio S ProCalioTherm ProCalioTherm S ProCalioTherm S

Flow rate Q

≤ 51 m³/h

≤ 24 m³/h

≤ 3.5 m³/h

≤ 24 m³/h

≤ 3.5 m³/h

≤ 0.7 m³/h

Head H

≤ 18 m

≤ 12 m

≤ 8 m

≤ 12 m

≤ 6 m

≤ 1.4 m

Piping connection

R/DN

R/DN

R

R/DN

R

R

Fluid temperatures

-10 - 110 ºC

-10 - 110 ºC

2 - 95 ºC

2 - 70 ºC

2 - 65 ºC

5 - 65 ºC

Suitability for drinking water

No

No

No

Yes

Yes

Yes

Interactive

Yes

No

No

Yes

No

No


Z = twin pump


Calio

Calio
Documents

Maintenance-free high-efficiency flanged or screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.

Details

Calio Z

Calio Z
Documents

Maintenance-free high-efficiency flanged or screw-ended glandless pump in twin pump design with high-efficiency electric motor and continuously variable differential pressure control.

Details

Calio Pro

Calio Pro
Documents

Maintenance-free high-efficiency flanged or screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.

Details

Calio Pro Z

Calio Pro Z
Documents

Maintenance-free high-efficiency flanged or screw-ended glandless pump in twin pump design with high-efficiency electric motor and continuously variable differential pressure control.

Details

Calio S Pro

Calio S Pro
Documents

Maintenance-free high-efficiency screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.

Details

CalioTherm Pro

CalioTherm Pro
Documents

Maintenance-free high-efficiency variable speed glandless drinking water circulator, screw-ended or flanged, electric motor and continuously variable differential pressure control for use in drinking water supply systems and hot water supply systems.

Details

CalioTherm S Pro

CalioTherm S Pro
Documents

Maintenance-free high-efficiency variable speed glandless drinking water circulator, screw-ended, with electric motor and continuously variable differential pressure control for use in drinking water supply systems and hot water supply systems.

Details
KSB's Calio S Pro heating circulator

Calculation aid for heating circulators

The payback calculator helps you determine the energy costs based on the German environmental label "Blue Angel". Enter some values of the pump to be replaced, select a replacement from the list, add electricity prices and operating hours – done.

Determine payback period
Eye looking over a large city

KSBase Consult Building

The KSBase Consult Building selection program is a support tool especially for building services consultants which provides relevant data, graphs, calculations and typical tenders. It allows you to quickly and easily find the right pump and valve for your project.

More information
