Trust our teams with your non-standard projects
KSB’s portfolio of valves is suited to the often highly specific and sometimes unique requirements associated with these complex specifications.
KSB’s valve teams help businesses, OEMs and engineering companies to manage non-standard or large-scale projects such as setting up new industrial installations all over the world.
From the specifications stage to construction on site
In the case of EPC (engineering, procurement and construction) projects and contracts, KSB’s teams implement the various specifications through to actual construction on site. KSB offers a range of configurable valves whose designs and materials can cope with the heavy-duty conditions of the environments encountered in the energy, oil and gas, water and marine sectors.
These projects generally comprise thousands of valves, which also calls for logistics expertise, as our customers know only too well.

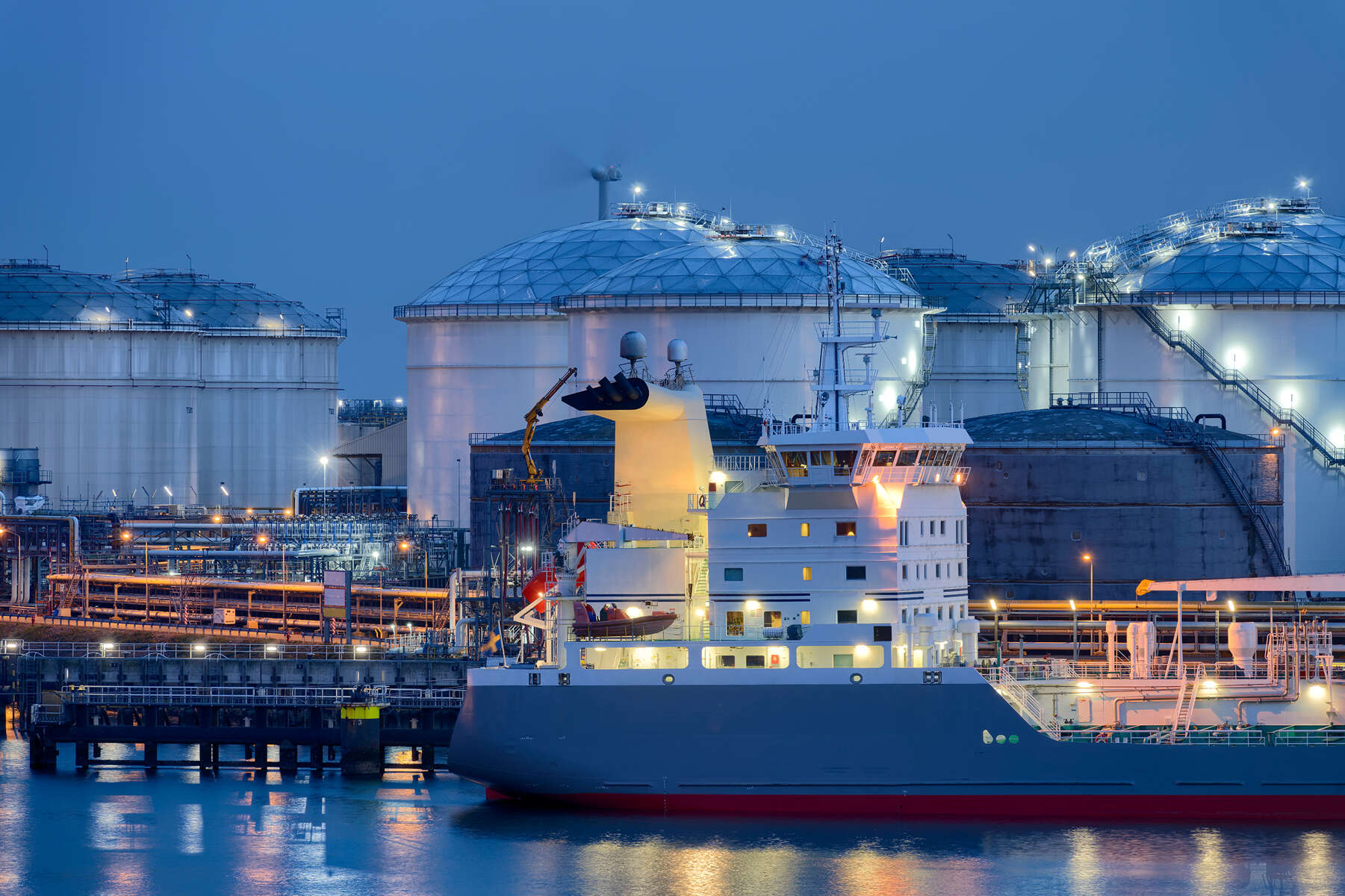

Since 1975, KSB has been the main supplier to the world’s fleet of methane carriers with its DANAIS TBT range.
All-in valve solutions
KSB’s teams offer complete and bespoke valve solutions, which means integrating the right actuator for the kind of energy involved (pneumatic, hydraulic, manual, electric or with a counterweight) as well as instrumentation accessories and remote control units for marine applications.
KSB industrial valves come with KSB’s own actuation equipment or similar technology from renowned manufacturers. KSB provides its own guarantee for the all-in valve solution delivered to the customer. KSB manufactures its products in accordance with the international safety standards requested by its customers, and their quality is certified by independent bodies.
So our customers can be confident they will benefit from very high levels of reliability for their projects which are often non-standard.
TRIODIS: the butterfly valve for extreme conditions
High pressure levels up to 150 bar, extreme temperatures from -200 °C to + 260 °C, harsh conditions and aggressive environments: with the TRIODIS triple-offset butterfly valve, tightness is guaranteed.
ISORIA 10/16
Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2 and T4 are suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME, JIS.
MAMMOUTH
Centred-disc butterfly valve, sealed by elastomer liner, with manual gearbox, electric, hydraulic or counterweight actuator, U-section body with flat faces (T5), connections to EN, ASME or JIS.
DANAÏS 150
Double-offset butterfly valve with ISO 5211 compliant square shaft end, with plastomer seat (also in fire-safe design), metal seat or elastomer seat (FKM [VITON R] or NBR [nitrile]). Lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of nodular cast iron, cast steel, stainless steel or duplex stainless steel (254 SMO). Wafer-type body (T1), full-lug body (T4), T4 suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME or JIS. Fire-safe design tested and certified to API 607. Fugitive emissions performance tested and certified to EN ISO 15848-1. ATEX-compliant version in accordance with Directive 2014/34/EU.
DANAÏS MT II
Double-offset butterfly valve with ISO 5211 compliant square shaft end, with plastomer seat or metal seat (fire-safe), without gland packing, maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic actuator, body made of steel or stainless steel. Wafer-type body (T1), full-lug body (T4) or flanged body (T7) with flat or raised faces. Body types T4 and T7 are suitable for dead-end service. Connections to EN, ASME or JIS. Certified to German TA Luft Technical Guidelines on Air Quality Control.
TRIODIS 150
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing, maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7) with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7 are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to ASME: Schedule 10S, 10, STD and XS to NPS for valves with butt weld ends (other connections on request). Fugitive emissions performance tested and certified to EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA). ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance with NACE MR0175 / ISO 15156 and MR 0103.
TRIODIS 300
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing, maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7) with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7 are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to ASME: Schedule 40S and STD to NPS for valves with butt weld ends (other connections on request). Fugitive emissions performance tested and certified to EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA). ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance with NACE MR0175 / ISO 15156 and MR 0103.
ZTS
Gate valve to DIN/EN or ANSI/ASME with butt weld ends, pressure seal design, billet-forged body, seat/disc interface made of wear and corrosion resistant Stellite, split wedge with flexibly mounted discs for precise alignment with the body seats.
NORI 320 ZXSV
Globe valve to DIN/EN with butt weld or socket weld ends, gland packing, throttling plug, non-rotating stem, bayonet-type body/yoke connection, integrated position indicator, seat/disc interface made of Stellite.
NUCA 320/-A 320/-ES type I, II, IV
Globe valve with butt weld or socket weld ends, for nuclear applications, with gland packing, replaceable seat (NUCA-ES), straight-way pattern, made of steel, stainless steel or nickel.
SISTO-DrainNA
Diaphragm valve with butt weld ends, for nuclear applications; shut-off and sealing to atmosphere by confined diaphragm. All moving parts are separated from the fluid by the diaphragm. Maintenance-free.
