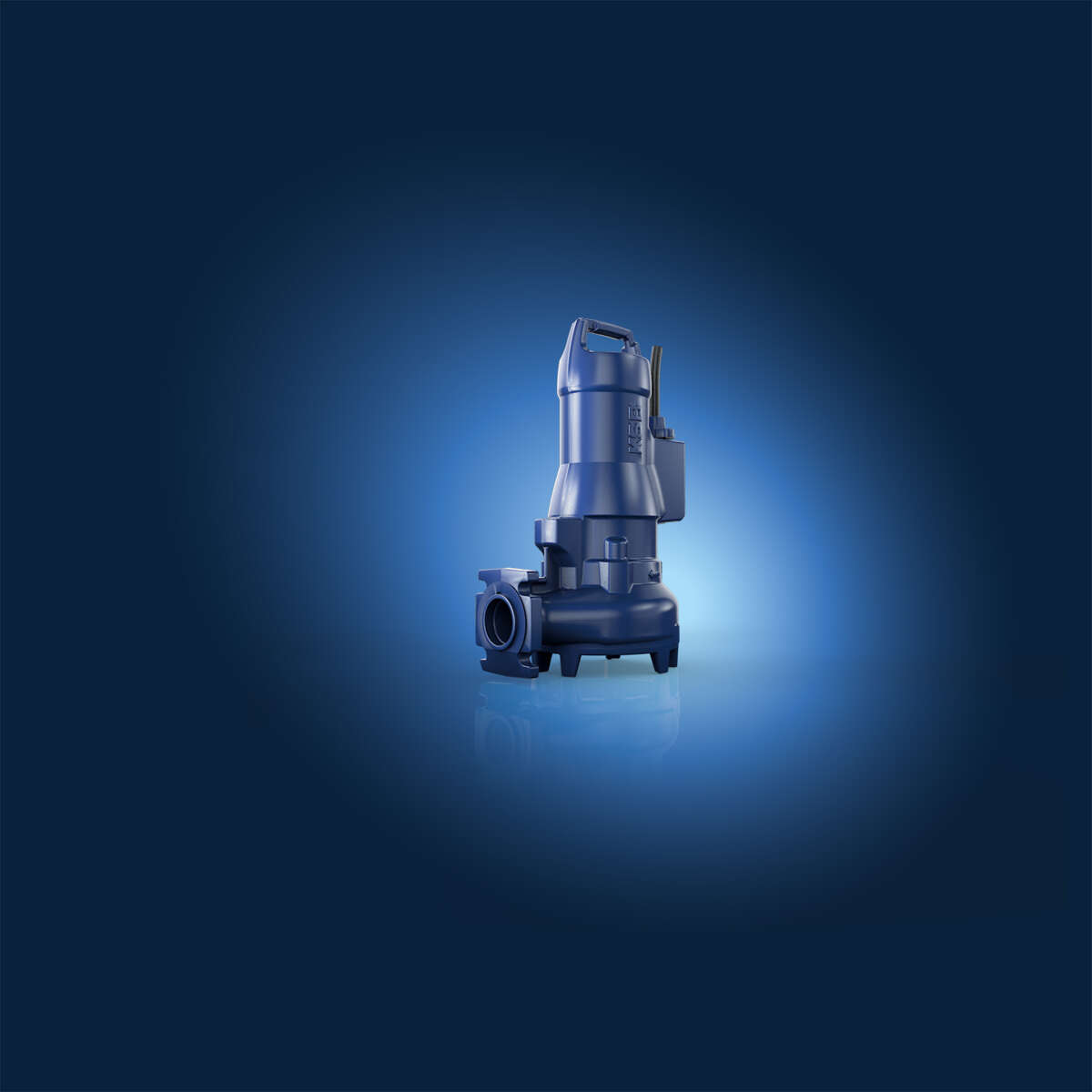

![KSB's AmaDrainer, AmaPorter and Amarex submersible motor pumps for domestic drainage](https://acszigalen.cloudimg.io/v7/https%3A%2F%2Flive-resources-e2e-sales.ksb.com%2Fresource%2Fblob%2F1921508%2F7cda338e29eb7a0e6e136171aefa3bbb%2Fpic-tauchmotorpumpen-data.jpg?ci_url_encoded=1&optipress=3&height=1200)
No matter how dirty it gets: Our submersible motor pumps always offer a clean solution.
The requirements for draining buildings are as diverse as our range of submersible motor pumps. At KSB you will always find a suitable, perfectly matching product for the fluid handled, the technical requirements and the performance data.
For the exact design variants, mating dimensions, materials and level switches of our submersible motor pumps, go to the corresponding type series detail pages.
AmaDrainer 3
Vertical single-stage fully floodable submersible motor pump in close-coupled design, with integrated level switch for automatic control or optionally for control via external control unit. The maximum immersion depth is 2 metres.
AmaDrainer 4 / 5/AmaDrainer 80 / 100
AmaDrainer 4../5..: Vertical single-stage fully floodable submersible motor pump in close-coupled design, IP68, with or without level control, max. immersion depth: 7 m. AmaDrainer 80/100: Vertical single-stage fully floodable submersible motor pump in close-coupled design, IP68, with or without level control, max. immersion depth: 10 m.
AmaPorter
Vertical single-stage submersible motor pump (grey cast iron) for waste water in close-coupled design for wet installation, stationary or transportable version.
Amarex
Vertical single-stage submersible motor pump for wet installation, with vortex impeller (F-max) or open dual-vane impeller (D-max), stationary or transportable version. Single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available.
Amarex NS
Vertical single-stage submersible motor pump for wet installation, with cutter (S), stationary or transportable version. Amarex N pumps are floodable, single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available.
