Pumping efficiently: Versatile irrigation pumps by KSB

Wherever water has to be pumped efficiently, KSB products are used. Whether wet-installed in a well or rainwater storage tank, or dry-installed for irrigating gardens or for other applications – we have got the right product for you.

A comparison of our irrigation pumps

Depending on the level of cleanliness of the fluid to be handled, irrigation pumps are operated in washing plants, spray irrigation systems or drinking water systems.

UPAIXOMovitec

Characteristic

Single pump

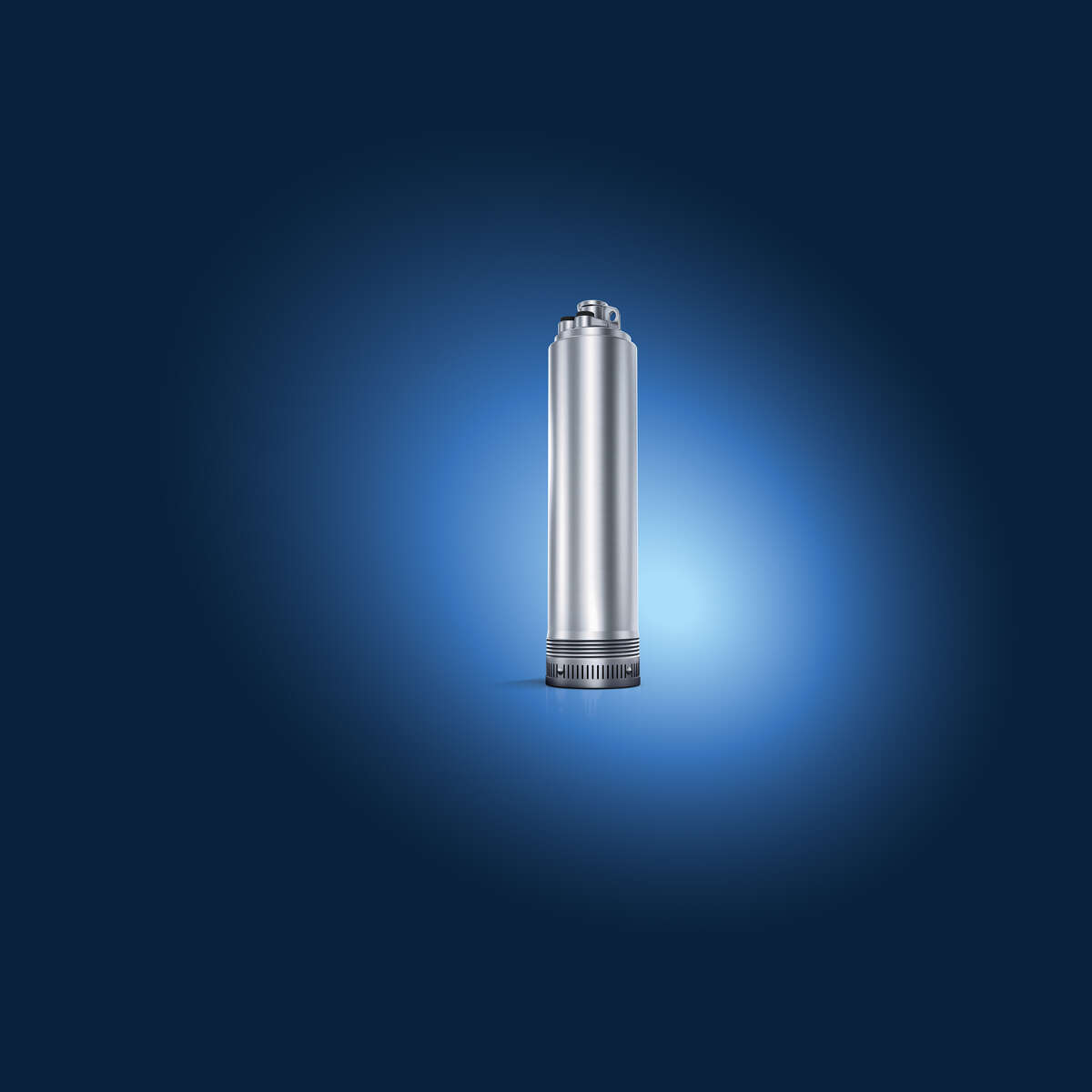

Submersible borehole pump

In-line pump

Flow rate Q

≤ 150 m3/h≤ 8 m3/h≤ 160 m3/h

Head H

≤ 300 m

≤ 65 m

≤ 160 m

Power P

< 22 kW

550 – 1500 W

< 22 kW

Voltage V

3 ~ 400V

1 ~ 230V (shockproof plug) or 3 ~ 400V

3 ~ 400V --- 1 ~ 230V (optional)

Variable speed system

No

No

Optional: PumpDrive

Fluid handled

River, lake and groundwater

River, lake and groundwater

Drinking water, clean water

Automation

UPA Control

Controlmatic E automatic control unit

Optional: PumpDrive

Movitec

Movitec
Documents

Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
