AmaDrainer Box, Compacta and MiniCompacta lifting units for domestic drainage

Waste water with or without faeces: KSB lifting units always give 100 %.

Whether you are looking for a lifting unit for safe backflow protection or for reliable drainage below the flood level: We offer a broad range of suitable waste water lifting units, from plug-in solutions for single-family houses to dual-pump systems for larger building complexes. With our powerful and diverse portfolio we cover all applications for domestic drainage of waste water with or without faeces.

A comparison of our lifting units for grey water and black water


AmaDrainer Box MiniAmaDrainer BoxMini CompactaCompacta

Type of system

Single-pump unit

Single/dual-pump unit

Single/dual-pump unit

Single/dual-pump unit

Flow rate Q

≤ 10 m³/h

≤ 35 m³/h / ≤ 46 m³/l

≤ 36 m³/h

≤ 145 m³/h

Head H

≤ 6,5 m

≤ 21 m / ≤ 24 m

≤ 25 m

≤ 24,5 m

Temperature T

≤ 50 °C

≤ 40 °C continuous duty

≤ 40 °C continuous duty

≤ 40 °C continuous duty

Power P

0,43 kW

0,25 – 0,6 kW

1,02 – 2 kW

2,74 – 5,2 kW

Effective volume V

10 l

100 l / 200 l

40, 60, 100, 150 l

100, 150, 300, 450, 900 l

Fluid handled

Without faeces

Without faeces

With faeces

With faeces

Free passage

10 mm

10, 18 or 35 mm

40, 65 mm

65, 80 mm

Installation types

Above-floor

Above-floor / underfloor

Above-floor (floodable)

Above-floor (floodable)

AmaDrainer Box/AmaDrainer Box Mini

AmaDrainer Box/AmaDrainer Box Mini
Documents

AmaDrainer Box:Stable above-floor plastic collecting tank or impact-resistant underfloor plastic collecting tank, with floor drain and odour trap, both with AmaDrainer submersible motor pump starting and stopping automatically and swing check valve AmaDrainer Box Mini:Reliable and compact grey water lifting unit in a modern design with activated carbon filter meeting hygiene requirements and with shower connection as standard; complies with EN 12050-2.

Details

MiniCompacta

MiniCompacta
Documents

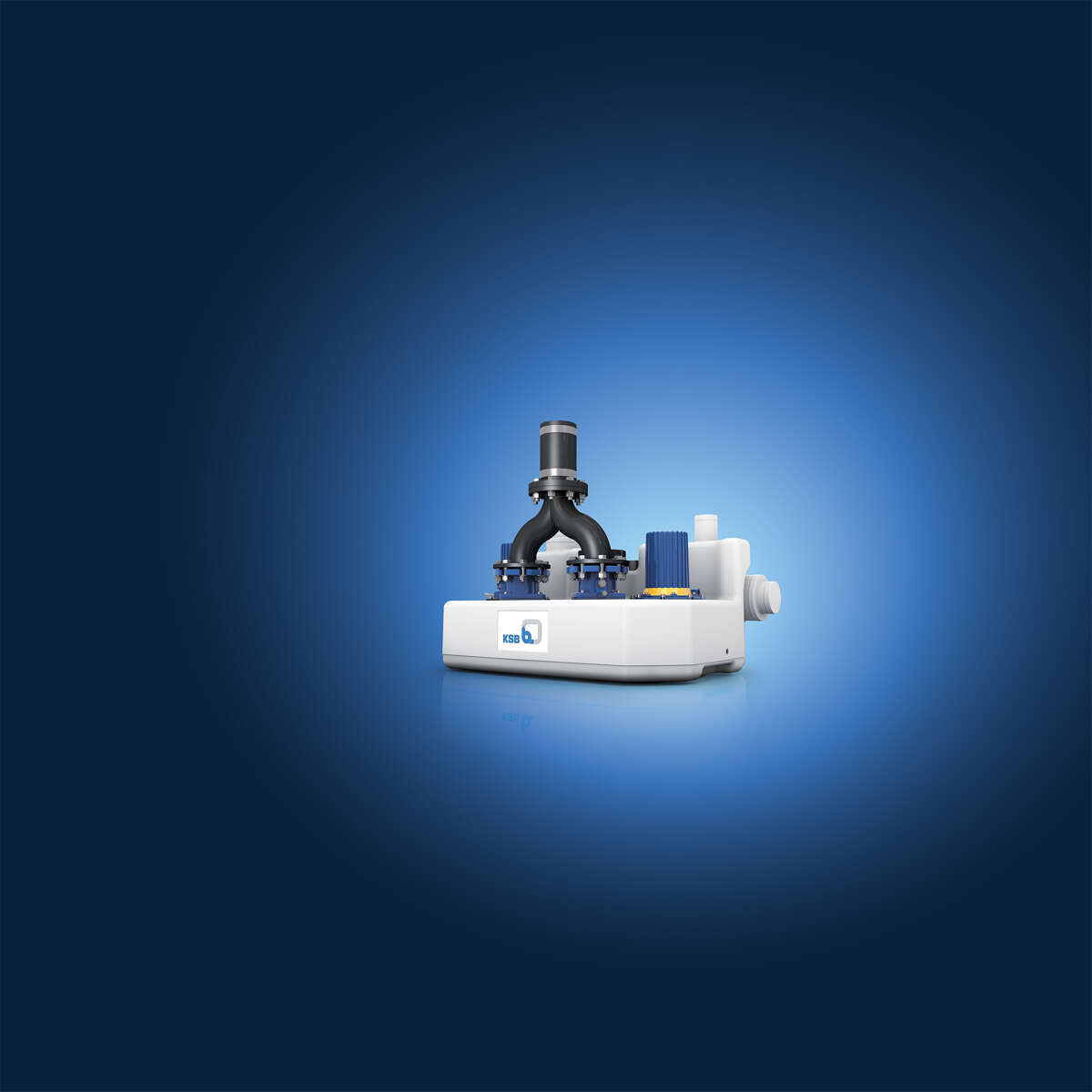

Floodable single-pump sewage lifting unit or dual-pump sewage lifting unit for automatic disposal of domestic waste water and faeces in building sections below the flood level.

Details

Compacta

Compacta
Documents

Floodable single-pump sewage lifting unit or dual-pump sewage lifting unit for automatic disposal of waste water and faeces in buildings and building sections below the flood level.

Details
KSB LevelControl Basic 2: Level control unit for controlling and protecting either one or two pumps.

Reliable lifting units need reliable control systems.

Single-pump lifting units for waste water without faeces are controlled by an integrated mechanical float; dual-pump units are controlled by one of KSB's LevelControl Basic 2 control units.

Depending on the design variant, lifting units for waste water containing faeces are either fitted with LevelControl Basic 1 or 2. With their many control and connection options, the control units ensure reliable, trouble-free operation of our waste water lifting units.

Calculation aid for lifting units

Calculation aid for lifting units

The calculation tool helps determine the waste water volume when the building type and design units have been entered.

Entering a head and pipe length will result in the required lifting unit, including its material number and list price.


Calculating the lifting unit
