KSB's sprinkler pumps and pump sets provide safety when things get hot

Insurers of fire protection systems only trust products that meet the requirements on design, certification, production, documentation and marking 100%. For a good reason. The dimensions are specified in the applicable fire protection directives. Here you will find an overview of all suitable KSB products for the corresponding directives.

Sprinkler pumps and pump sets to national and international fire protection directives

The following design variants are available from KSB:

Single pump set

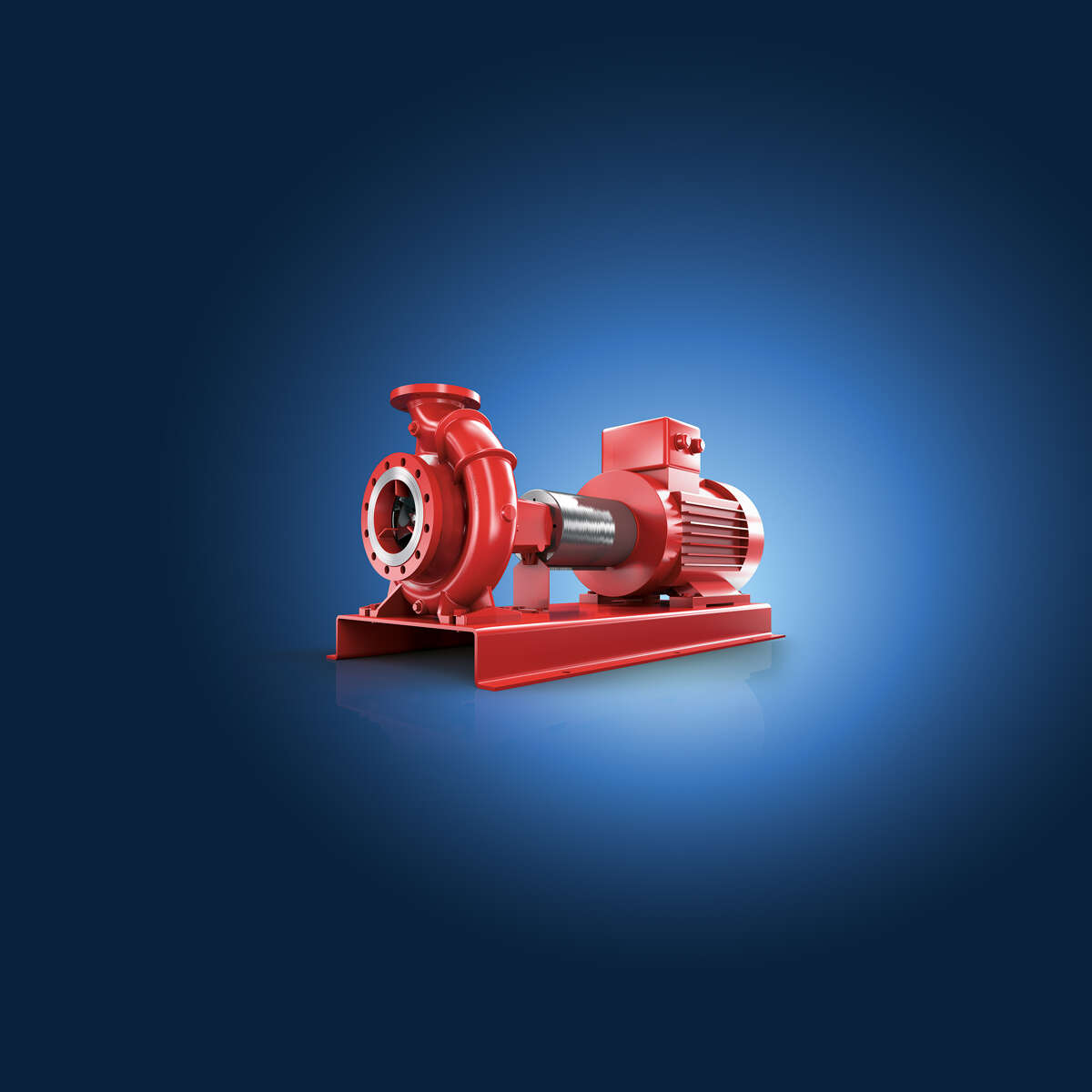

Electric motor pump set with wired control cabinet on a common base frame

Diesel engine pump set with tank, control cabinet and batteries

Sprinkler pumps and sprinkler pump sets to VdS

We offer sprinkler pump sets compliant with the VdS guideline in a large range of different design variants, certainly also matching your application: as a submersible motor pump installed in the sprinkler tank with a control cabinet in the sprinkler control room or as a dry-installed pump set for installation in the sprinkler control room.

Sprinkler pump sets designed as submersible pumps — Dry-installed sprinkler pump sets

Dry-installed sprinkler pump sets — Sprinkler pump sets designed as submersible pumps

	UPA	VdS Movitec	Etanorm FXV	Etanorm RX	CPKN-SX	Multitec ASX
l/min max at VdS approval limit	6870	1033	13466	15667	7949	3000
H (m) max at VdS approval limit	173	166	107	74	119	550
Drive types	Electric motor		Electric motor or diesel engine
Place of installation	In the sprinkler tank	In the sprinkler control room

Control systems

Matching VdS-compliant control cabinets in different designs incl. automatic mains switchover can be found at KAGEMA.

Find matching control cabinets

Sprinkler pumps and pump sets to FM, UL or NFPA 20

Our FM, UL or NFPA 20 product range comprises the Etanorm FXM and Omega FXF type series. The pump sets are available driven by an electric motor or diesel engine.

Available KSB sprinkler pumps approved by FM or UL

	Etanorm FXM	Omega FXF
Q rated max (US Gpm)	1500	3500
H (m) max at Q rated	137	120
Possible drive type	Electric motor and diesel engine

Sprinkler pumps and pump sets to APSAD R1, EN 12845 or without certification / listing

In many countries, additional fire protection directives are in force. Here, too, our KSB sprinkler pumps cover a broad range.

Contact our local sales representatives

Jockey pumps or tank filling pumps for sprinkler installations

To make sure that the main fire-fighting pumps do not start up automatically when minor leakage losses occur in the sprinkler system, these pumps maintain a defined pressure in the sprinkler system and balance out water losses. They do not need to comply with national or international fire protection guidelines.

Get to know Movitec
