BOA-Control: our full range for classic balancing
Saving energy with the right setting

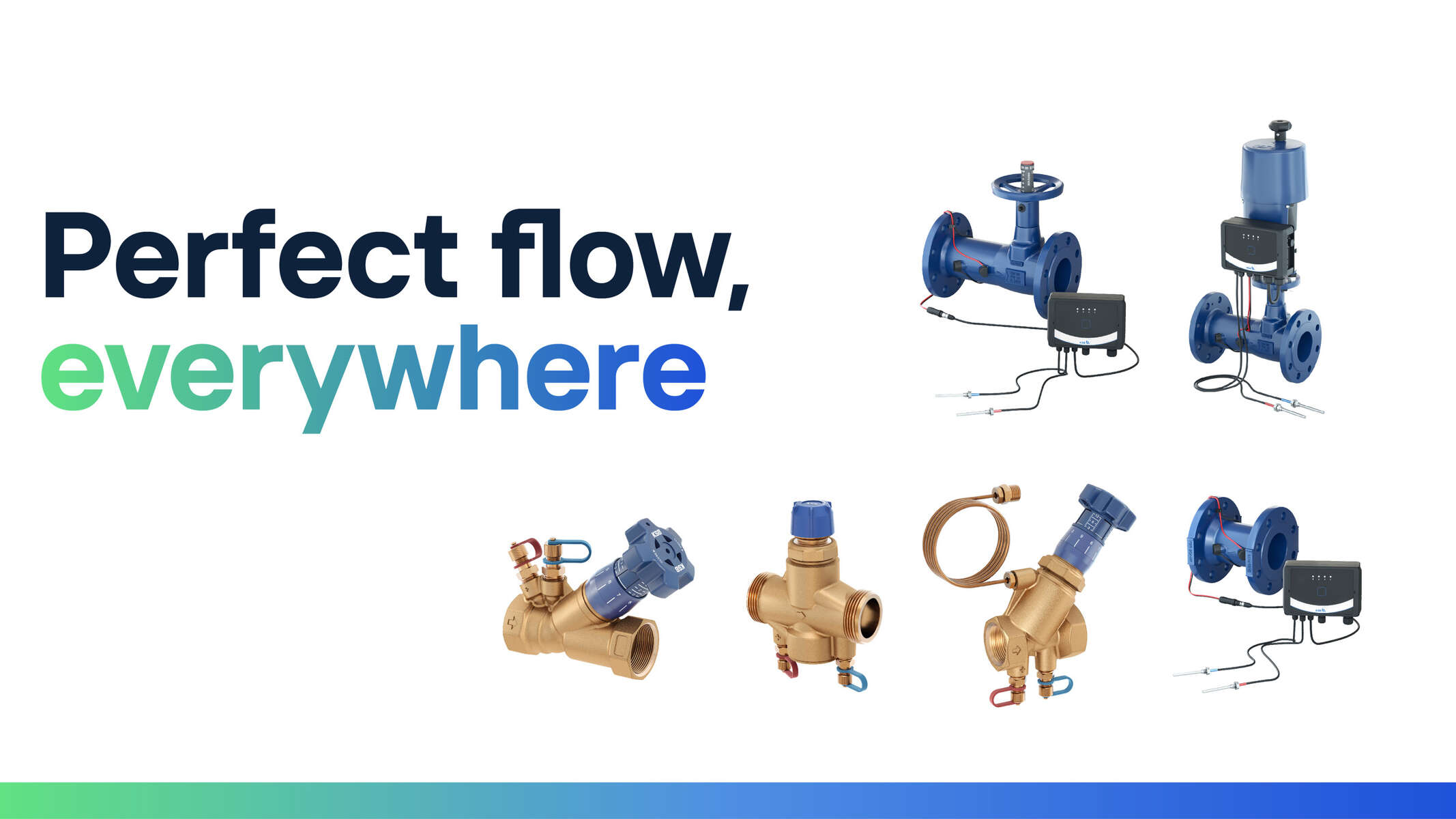

Reliable and energy-efficient operation: hydraulic balancing enables saving potentials of up to 21% – at relatively low investment costs. We offer you a complete portfolio of classic hydraulic balancing solutions: from static measurement valves and differential pressure regulators right through to control valves including actuators.
KSB offers you the complete solution portfolio from line regulation to process monitoring: from static line regulating valves to differential pressure regulators and pressure-independent control valves (PICVs for short) to monitoring solutions and intelligent measuring and control valves for automatic hydraulic balancing.
Hydraulic balancing – for efficient operation
Water always seeks the path of least resistance. Despite this fact, even and demand-driven water distribution within a building can be ensured by balancing valves for automatic hydraulic balancing.
The aim is to provide the right amount of water at the right place, at the right time. To achieve this, all parts of the hydraulic system that is part of the building management system have to be matched and balanced. Or to put it another way, the heating and cooling water should be distributed to all consumers as needed.
Hydraulic balancing is indispensable for operation to be reliable and, especially, cost and energy-efficient. In addition, it is an integral part of a professional installation and also a requirement stipulated in many standards and directives (DIN 18380 / VOB 3.1.1, GEG + GEG Sec. 71 / DIN V 4701-10, DIN EN 14336).
Find the matching balancing valve for your application.
BOA-Control SBV
Maintenance-free balancing and measurement valve with female threaded ends, Y-pattern, continuous presetting, with position indicator readable from all angles (360°). Includes travel stop and 2 measurement ports with fixed measuring orifice (tolerance +/- 5 %) for measuring pressure, differential pressure and flow. Minimum space requirements thanks to non-rising handwheel and all functional parts being positioned on the same side as the handwheel.
BOA-Control/ BOA‑Control IMS
Balancing, measurement and shut-off valve with flanged ends to DIN/EN, constant measurement accuracy independent of differential pressures. Body in standard face-to-face length to EN 558/1, throttling plug, scaled position indicator, travel stop and insulating cap with anti-condensation feature; maintenance-free, full insulation possible. Also available with electrostatic plastic coating (EKB) and DVGW-certified for drinking water. With integrated ultrasonic sensors not coming into contact with the fluid handled. Stationary monitoring by means of BOATRONIC 100 MOD (24 V AC/DC, Modbus) of flow direction, volume flow rate and temperature, and optional recording of supply and return temperature as well as thermal output and quantity of heat. Mobile measurement of flow direction, volume flow rate and temperature using the BOATRONIC MS (battery powered) / BOATRONIC 100 (rechargeable battery powered) measuring computers.
BOA-Control DPR
Differential pressure control valve / proportional control valve for the constant control of an adjustable differential pressure setpoint without auxiliary energy, with threaded ends (DN 15 - 50) or flanged ends (DN 65 - 100). Setpoint can be adjusted continuously and read from the outside at any time. The valve closes automatically with rising pressure. Includes quick-measurement ports for measuring pressure loss. Available in various pressure control ranges (LP/HP) from 5 to 80 kPa (threaded ends) and from 80 to 160 kPa (flanged ends).
BOA-Control PIC
Pressure-independent combination valve, comprising a continuously adjustable flow controller and a control valve for hydraulic balancing and dynamic volume flow control at constant valve authority, with threaded ends (DN 10-50) and flanged ends (DN 65-150). Continuously variable adjustment of the volume flow rate setpoint directly at the valve thanks to the digital scale, with mechanical locking function. With measurement ports for checking the pressure and minimum differential pressure. Available in various volume flow rate control ranges (LF/HF) from 43 to 8586 l/h (valve with threaded ends) and from 4.4 to 160 m³/h (valve with flanged ends). With actuator mounting option (M 30 x 1.5) for the electrical control of an additional variable such as room temperature by adjusting the volume flow.
BOA-CVE C/CS/W/IMS/EKB/IMS EKB
Control valve to DIN/EN based on standard type series BOA-Compact, BOA-SuperCompact, BOA-W, BOA-Compact EKB, BOA-Compact IMS EKB, BOA-Control IMS and BOA-Control IMS EKB, bonnetless pressure-retaining body, soft-seated. Leakage rate selectable from 0.05 % to drop-tight, Kvs values between 6.3 and 700 m³/h and closing pressures of up to 16 bar. With intelligent microprocessor-controlled and pre-set electric actuators providing actuating forces from 1000 N to 14,000 N; electronic configuration of flow characteristic, Kvs value, actuating signal and actuating time using PC tool or manual parameterisation unit. Customised configuration can be implemented at the KSB factory on request.
BOA-CVE H
Service-friendly control valve to DIN/EN with flanged ends, either with linear or equal-percentage control characteristic at Kvs values of 0.1 to 630 m³/h and closing pressures of up to 40 bar; all internal parts are easy to replace without special tools, including the reversible seat; noise level reduced by standard two-stage pressure reduction combining a parabolic plug and multi-hole cage; with electric actuator.
BOA-CVP H
Service-friendly control valve to DIN/EN with flanged ends, either with linear or equal-percentage control characteristic at Kvs values of 0.1 to 630 m³/h and closing pressures of up to 40 bar; all internal parts are easy to replace without special tools, including the reversible seat; noise level reduced by standard two-stage pressure reduction combining a parabolic plug and multi-hole cage; with pneumatic actuator.
