Water supply in the Netherlands: Waternet pumping station in Utrecht
6 min read

Rejuvenation of two ageing pumping stations supplying raw drinking water in Utrecht (direction of Amsterdam)

Waternet, the water utility for the Amsterdam region, ensures that drinking water plants and industries in the area are reliably supplied with raw and drinking water. Two of their pumping stations were starting to show their age and needed to be modernised. The goals: more efficiency and less work for staff. Exactly the right challenge to put to the experts at KSB!

Waternet, the water utility for the Amsterdam region, ensures that drinking water plants and industries in the area are reliably supplied with raw and drinking water. Two of their pumping stations were starting to show their age and needed to be modernised. The goals: more efficiency and less work for staff. Exactly the right challenge to put to the experts at KSB!

The project:

Modernisation of two pumping stations for supplying raw drinking water

Although pumping stations are generally designed for a long service life, eventually the time comes when they need to be completely modernised. The pumping stations operated by the Waternet Water company had reached this point a few years ago. Their energy consumption was no longer up to current standards, the noise emissions were too high, vibrations and cavitation were causing problems in the system, and the amount of work required for maintenance also needed to be significantly reduced.

Modernising the pumping stations involved dismantling a total of 18 old pumps with motors and installing eight new RDLO 500-685 A GB pumps with motors of 1 MW and 6 kV – plus renewing all associated piping, valves, ventilation systems, electrical installations, variable speed systems and control cabinets including state-of-the-art safety and monitoring systems with SIL (Safety Integrity Level) combined with programmable Pilz relays.

At the end of the tendering process, only two bidders remained who were able to meet the required specifications. However, KSB was also able to warrant more cost-effective total life cycle costs over a planned calculation period of three decades and was therefore awarded the contract.

The client:

Drinking water supplier Waternet Amsterdam in the Netherlands

The water supplier Waternet serves the regional public water authority Amstel, Gooi en Vecht and the municipality of Amsterdam. The company ensures that citizens are reliably supplied with a sufficient amount of fresh drinking water. As the supply area is below sea level, the company also has to make sure that the 1.3 million residents in the catchment area are protected against flooding.

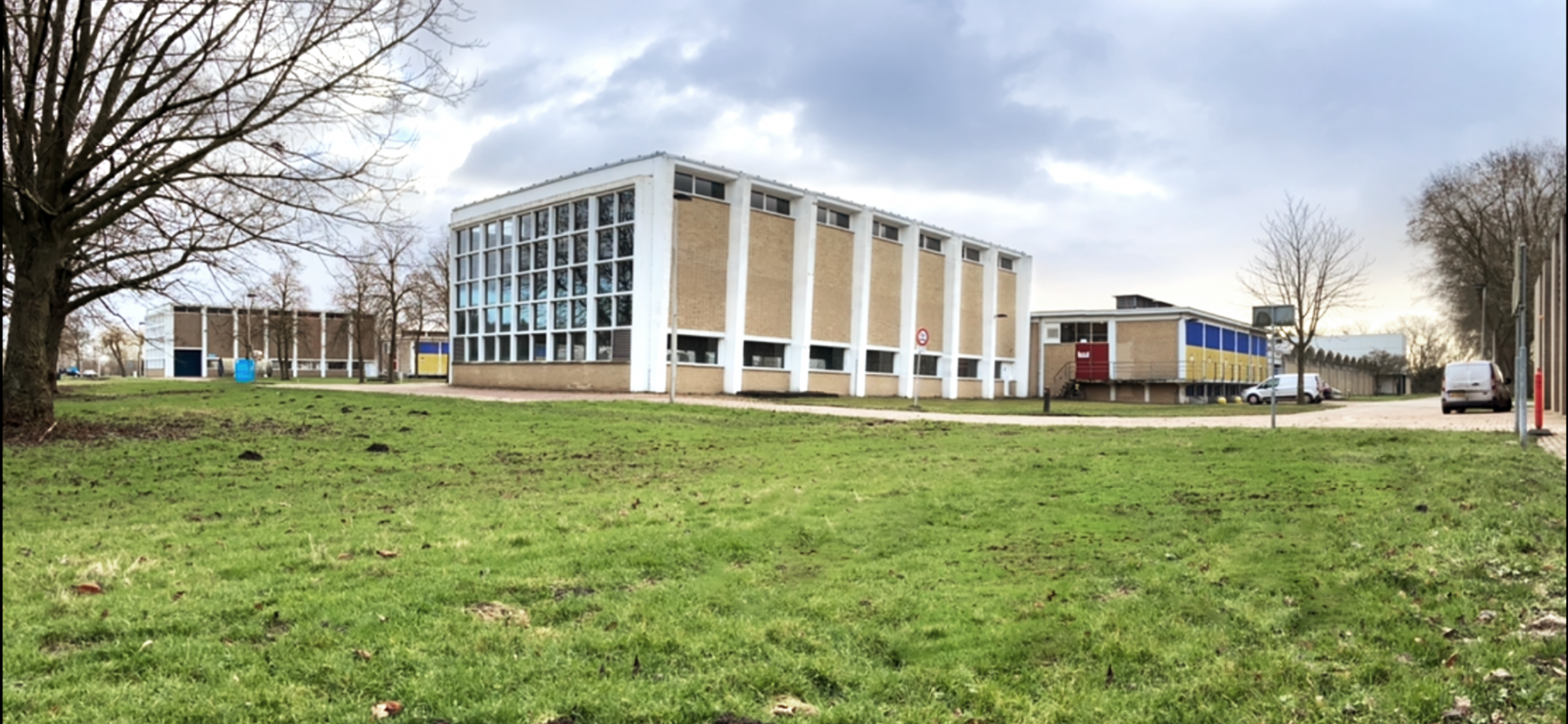

Pumping station of water supplier Waternet equipped with 4 RDLO water pumps

Pumping station of water supplier Waternet equipped with 4 RDLO water pumps

The challenge:

Tight timing, lots of people involved – and the coronavirus pandemic

The project entailed several different types of challenges and presented the project team with a number of hurdles. First of all, the planning was divided into four very tightly timed phases, further complicated by the fact that no major work could be carried out on the system during the summer season. On top of this, many of the planning and implementation measures took place precisely during the time of the global pandemic.

However, the main challenges resulted from the design constraints in the existing building:

  • The correct positioning of the inlet nozzles in the underfloor intake chamber,
  • Ensuring an even, vortex-free flow in each suction line,
  • Hazardous work conditions in moist basements at risk of flooding
  • Construction of vibration-free pump foundations,
  • Cooling the variable speed system with outside air,
  • Sophisticated control equipment

A wide variety of disciplines were involved in the project which were dependent on each other, but this was handled successfully thanks to effective communication and mutual understanding on all sides.

Construction began in November 2018. However, due to various delays and the exceptional circumstances, it was not possible for the handover to take place until October 2021.

KSB RDLO volute casing pump

Single-stage, axially split RDLO volute casing pump for horizontal installation on vibration-free concrete foundation

The solution:

Efficient cooperation between all project participants

The hydraulic engineering design was provided by KSB Nederland in cooperation with specialists from the Global Sales team at KSB Halle, while the engineering for the pump foundations, pipe diameters and pipe supports was carried out in cooperation with HAL-Engineering in Halle. KSB also checked the electrical installations with a professional consultant and provided the missing manpower.

All of the RDLO 500-685 water pumps were tested to ISO9906, class 1U, according to schedule at the Halle test facility in the presence of the customer. Following these first tests, the pump sets were tested again in the presence of the customer in Halle, but this time with the complete drive trains, i.e. including motor, variable speed system, inverter, transformer and coupling. After successful testing, the pump sets were installed in the Netherlands.

Thanks to the high efficiency and performance of the installed RDLO pumps and the drive train components, the multi-million euro investment will pay for itself within a very short time. The objectives were achieved and the customer was highly satisfied with the solutions supplied by KSB.

Facts and figures

Project:

2 pumping stations

End user:

Waternet Amsterdam, Netherlands

KSB type series used in this project:

8 x RDLO 500-685 A GB with 1MW 6kV motors

Commissioned:

2019 and 2020 ( in four phases) hand over in 2021
