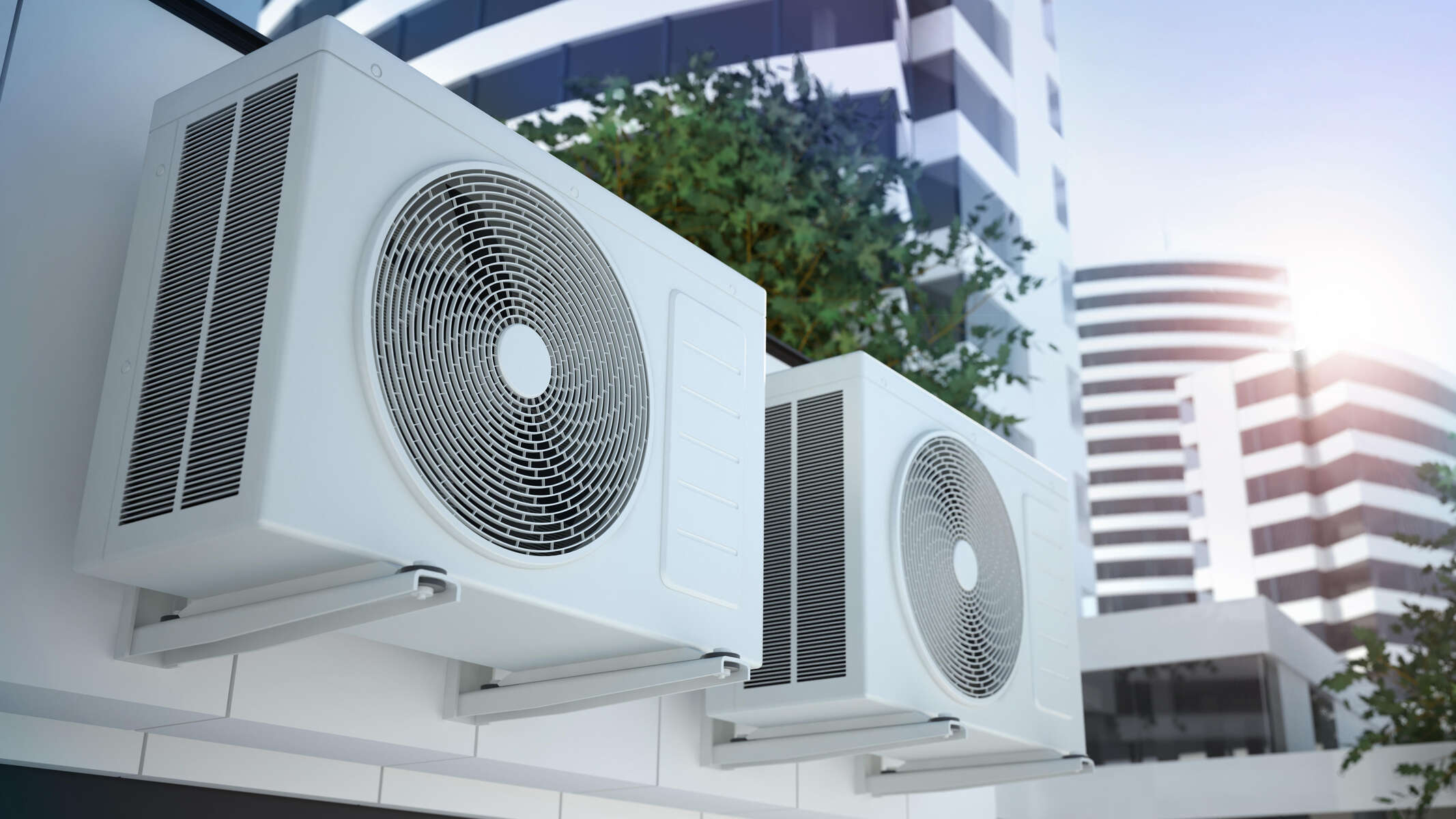

![Air-conditioning units on an outside wall](https://acszigalen.cloudimg.io/v7/https%3A%2F%2Flive-resources-e2e-sales.ksb.com%2Fresource%2Fblob%2F226086%2F3c93c965619ff0ade54264fe09f6fc02%2Fpic-heating-and-cooling-supply-stage-data.jpg?ci_url_encoded=1&optipress=3&height=1200)
Heating and Cooling Supply
Strong on their own, unbeatable together: KSB products are the basis for highly efficient HVAC systems
KSB supplies the right components for use in heating and cooling applications as part of its comprehensive range featuring pumps and valves alongside automation and drive solutions.
When it comes to heating and cooling systems, unique challenges require tailored solutions
Clean air, the right humidity and a comfortable temperature: Properly conditioning a room’s interior climate is the basic prerequisite for the well-being and performance of people and machinery.
Whether family house, office complex or computer centre: Every building is unique and poses specific challenges when planning and implementing optimum heating, ventilation and air-conditioning systems. Effective and efficient HVAC solutions thus require suitable components optimised to work perfectly together.
While challenges may vary depending on the building project, component requirements remain the same. Pumps and valves employed in this sector should work reliably and quietly while offering a long service life.
However, for heating and cooling supply in building services applications, economic efficiency and ecological considerations are just as important as functionality. Here, efficient use of energy is a key topic.
KSB products are the foundation for perfectly matched and highly efficient HVAC systems
KSB is the only supplier on the market to offer a complete range of heating, air-conditioning and ventilation systems comprising pumps and valves alongside automation and drive solutions. This means that customers are sure to find suitable components for their systems with their special requirements.
Optimised to work together, these efficient components cover the requirements of all heating, ventilation and air-conditioning systems – from single-family homes to airports. The result is that KSB products are the foundation for highly efficient HVAC systems whose components are optimised to work perfectly together.A comprehensive range of services rounds off KSB’s portfolio for heating and cooling supply in building services applications available from a single source.
Pumps, valves, drives and automation products: KSB supplies the right components for every application
Thanks to the breadth and depth of its product range, KSB is able to supply the right components for all applications in heating, ventilation and air-conditioning – whether for family homes, high-rise buildings, railway stations or computer centres.
But optimised adaptation to individual conditions requires more than an extensive product portfolio. Years of experience on the market and ground-breaking technology are just as important. KSB offers both: thorough know-how gained through the implementation of numerous projects and innovative solutions developed through continual investment in research and development.
Many KSB pumps for cooling and heating systems can be equipped with high-efficiency drives such as KSB SuPremE and automation solutions such as PumpDrive. These smart products ensure energy-efficient operation of your system, monitor the operating status of your pump and notify you of any necessary service measures in good time.
Operating alone, these high-quality pumps already work reliably and efficiently. But they work even better in an optimally configured system. KSB thus offers the right valves for all pump applications, and these enable hot water, heating, ventilation and air-conditioning systems to be controlled and flow rates matched to demand. The result: increased overall efficiency in your plant and substantial savings in energy consumption. Of course, KSB valves also offer exceptional quality. They work safely and reliably when shutting off and controlling a wide variety of fluids.
Calio S Pro
Maintenance-free high-efficiency screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.
Calio
Maintenance-free high-efficiency flanged or screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.
Etaline
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
BOA-Control/ BOA‑Control IMS
Balancing, measurement and shut-off valve with flanged ends to DIN/EN, constant measurement accuracy independent of differential pressures. Body in standard face-to-face length to EN 558/1, throttling plug, scaled position indicator, travel stop and insulating cap with anti-condensation feature; maintenance-free, full insulation possible. Also available with electrostatic plastic coating (EKB) and DVGW-certified for drinking water. With integrated ultrasonic sensors not coming into contact with the fluid handled. Stationary monitoring by means of BOATRONIC 100 MOD (24 V AC/DC, Modbus) of flow direction, volume flow rate and temperature, and optional recording of supply and return temperature as well as thermal output and quantity of heat. Mobile measurement of flow direction, volume flow rate and temperature using the BOATRONIC MS (battery powered) / BOATRONIC 100 (rechargeable battery powered) measuring computers.
BOA-Compact
Globe valve to DIN/EN with flanged ends, short face-to-face length to EN 558/14, slanted seat design with vertical bonnet, single-piece body, EPDM-encapsulated throttling plug, soft main and back seat, position indicator, locking device, travel stop, insulating cap with anti-condensation feature; maintenance-free, full insulation possible.
BOAX-S/SF
Centred-disc butterfly valve with ISO 5211 compliant square shaft end for butterfly valves from DN 350, with heat barrier and elastomer liner (EPDM XU or nitrile K), with lever, manual gearbox or electric actuator (BOAXMAT-S and BOAXMAT-SF); semi-lug body (T2) or full-lug body (T4) for downstream dismantling and dead-end service. Valve disc made of stainless steel 1.4308, connections to EN.
