Mechanical Engineering
Tradition meets progress: Well equipped for every challenge – with products from KSB
As well as withstanding the toughest operating conditions, valves and pumps for mechanical engineering also have to offer convincing cost-effectiveness.
Keeping up with the challenges and looking to the future
Mechanical engineering applications place the toughest demands on pumps and valves. Fluids including high-temperature oils, cooling lubricants containing chips, process water with solids content and treated boiler water demand a lot from the materials used for pumps and valves.
Machine tool manufacture, thermal oil systems and steam boiler systems all require the highest levels of precision and safety. The construction materials and performance of valves and pumps in mechanical engineering must therefore match the fluid to be handled.
But production requirements are not the only benchmark; market requirements must also be considered. Mechanical engineering has long faced economic and technological challenges: Internationalisation, new markets in emerging economies and competitors joining the market are all contributing to increased competition.
The impact of technological trends such as digitalisation and Industry 4.0 on the sector is also intensifying. Companies looking to gain ground on the competition need to have their operating costs under control and their eyes open to digital change processes.

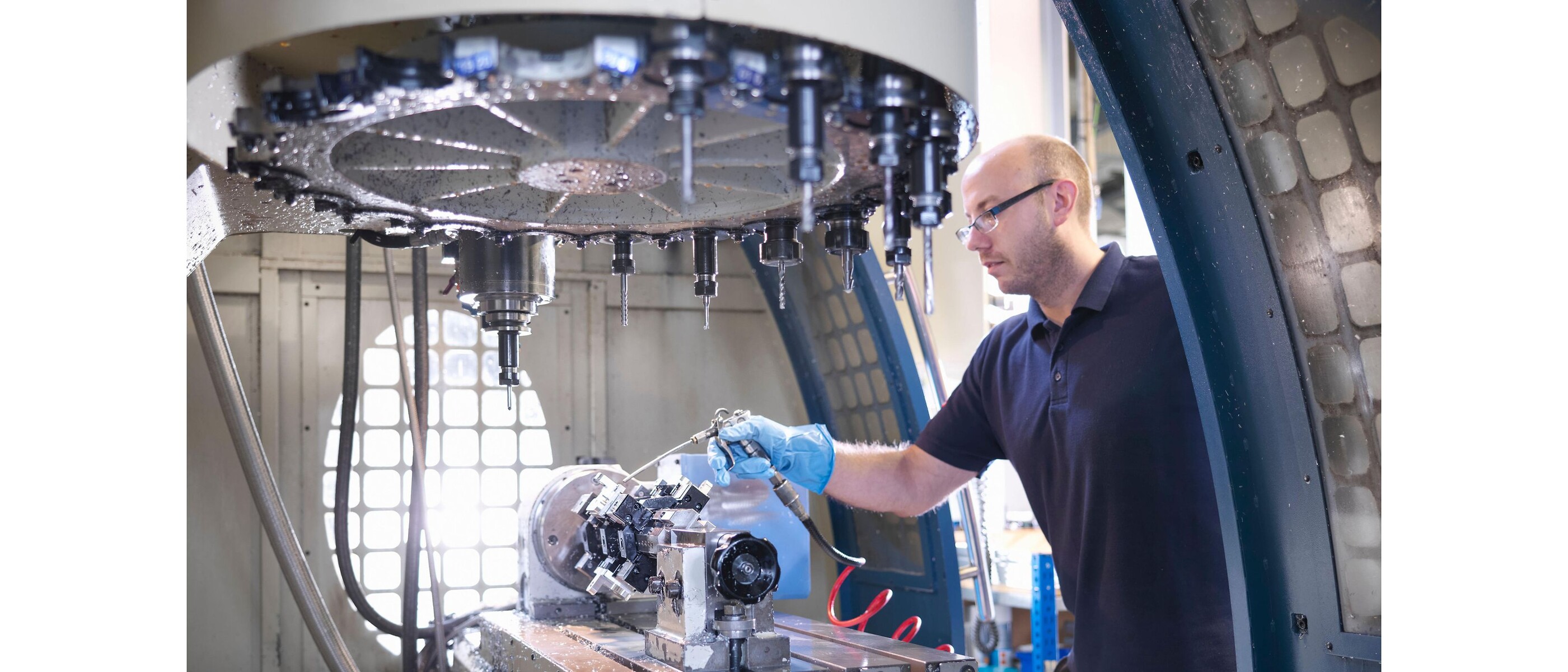

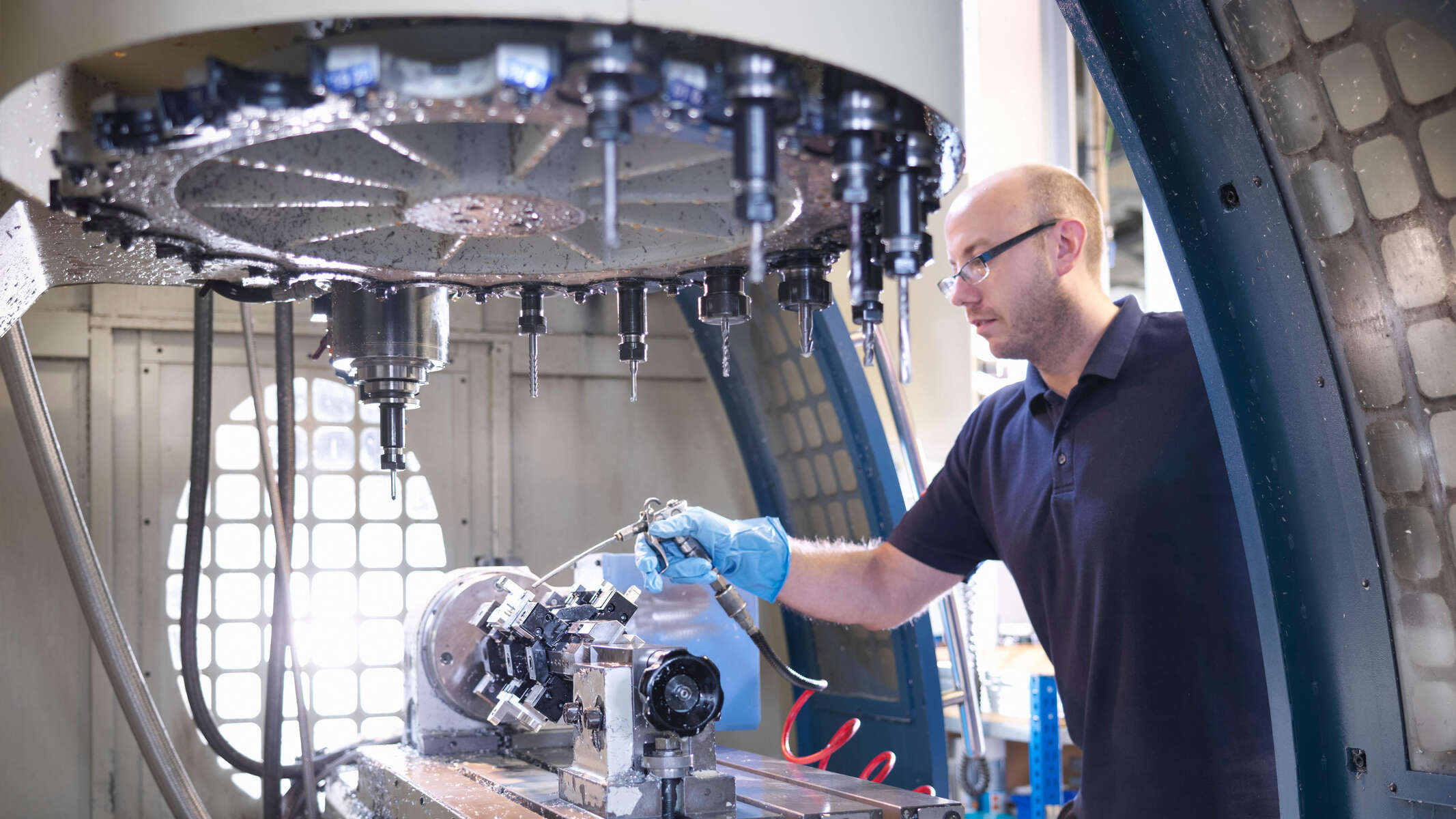

In demand in mechanical engineering: pumps help to remove metal chips and separate them from cooling lubricants.
KSB products for mechanical engineering
are ready to meet every application technology and economic challenge
Having accrued many years of experience on the market, KSB offers products and services that meet the demanding requirements of mechanical engineering – both in terms of technology and cost effectiveness.
KSB pumps and valves are flexible and can be individually adapted to match the application. They enable efficient operation regardless of load conditions. In addition, high product quality guarantees unbeatable process reliability which in turn supports consistent quality in your production.
Equipped with innovative technology, KSB pumps for mechanical engineering contribute significantly to lowering operating costs and boosting company earnings.
The toughest demands require products of the highest quality
From close-coupled pumps to standardised pumps, high-pressure pumps, immersion pumps and cooling lubricant pumps: KSB offers a broad product portfolio enabling us to respond flexibly and individually to your needs and requirements.
KSB pumps for mechanical engineering can also be configured on an individual basis to match the fluid handled, for example by incorporating special mechanical seals, casing wear rings and a wide range of material combinations. This ensures smooth pumping and a reliable production process.
In addition, pumps can be equipped with automation and drive solutions such as PumpMeter, KSB Guard or PumpDrive: These smart products monitor the operating status of the pump, ensure energy-efficient operation of your pump system and notify you of necessary service measures in good time. Digital solutions thus create transparency within the process, prevent unplanned downtimes and reduce operating costs.
KSB offers both specialised niche solutions and integrated system solutions. High-quality products for mechanical engineering are complemented by an excellent range of services from KSB SupremeServ.
Movitec
Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etabloc
Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etanorm
Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Multitec
Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.
HPK-L
Horizontal radially split volute casing pump in back pull-out design to ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Equipped with heat barrier, seal chamber air-cooled by integrated fan impeller, no external cooling. ATEX-compliant version available.
NORI 40 ZXLB/ZXSB
Bellows-type globe valve to DIN/EN with flanged ends (ZXLB), butt weld ends or socket weld ends (ZXSB), replaceable tapered on/off disc or throttling plug, two-piece stem, integrated position indicator, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
STAAL 40 AKD/AKDS
Gate valve to DIN/EN with flanged ends (AKD) or butt weld ends (AKDS), with bolted bonnet, body of forged or welded construction, non-rotating stem, split wedge with flexibly mounted discs for precise alignment with the body seats. Seat/disc interface made of wear and corrosion resistant 17 % chrome steel.
ISORIA 10/16
Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2 and T4 are suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME, JIS.
DANAÏS 150
Double-offset butterfly valve with ISO 5211 compliant square shaft end, with plastomer seat (also in fire-safe design), metal seat or elastomer seat (FKM [VITON R] or NBR [nitrile]). Lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of nodular cast iron, cast steel, stainless steel or duplex stainless steel (254 SMO). Wafer-type body (T1), full-lug body (T4), T4 suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME or JIS. Fire-safe design tested and certified to API 607. Fugitive emissions performance tested and certified to EN ISO 15848-1. ATEX-compliant version in accordance with Directive 2014/34/EU.
