Keeps the world on the move
Eta is known for its excellent efficiencies. It also stands for high quality, enormous versatility and absolute reliability. This is why it has been chosen to ensure reliable processes in many applications.
You can also enjoy the benefits of the world’s best-selling standardised water pump.
Eta: the mother of all standardised pumps
As early as in 1935 KSB developed its first Eta pump, which was a milestone in the development of standardised pumps. Today Eta is a classic – proven for decades – in industrial applications as well as in building services, water supply and energy supply.
The proof is in the pudding: it is its reliability that has made KSB’s Eta the best-selling standardised water pump in the world. Around the globe 1.5 million Eta pumps are in use today. That is not surprising considering the 150 years of know-how and experience behind this KSB product. What the remarkable thing is: each individual Eta pump is manufactured to specific customer requirements.

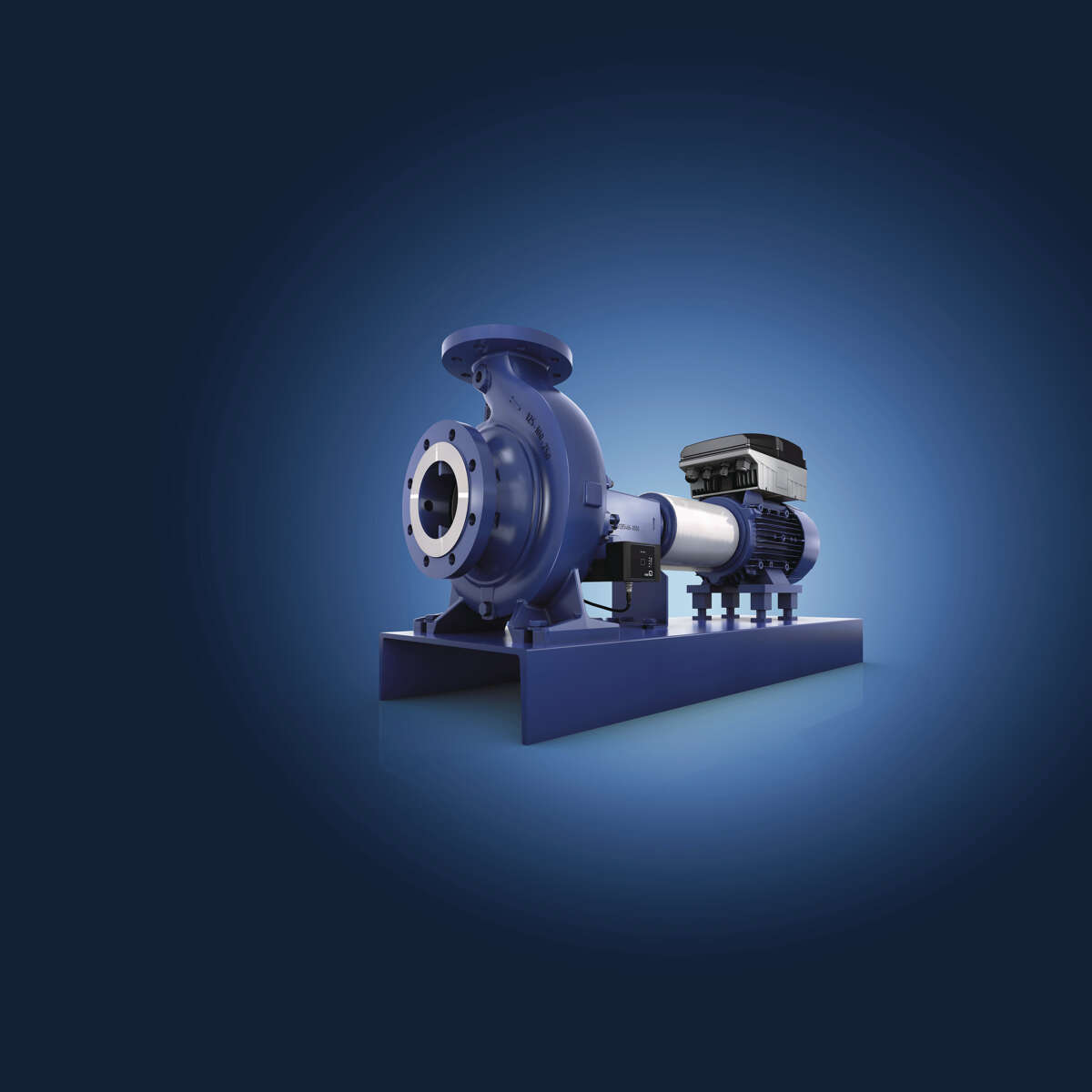

Pumping future into your system: Etanorm with KSB SuPremE® motor, PumpDrive variable speed system and KSB Guard monitoring tool.
Your individual Eta: manufactured and ready for use in just a few days
Almost every pump from KSB’s Eta type series is unique. And yet, your Eta pump will be ready for dispatch within a few days*. Ordering an ident. number product from the KSB Web-Shop speeds up the process even more with its automated internal processing system. Via the “Track & Trace” function you can track the status of your delivery at any time.
The key to short delivery times is the high degree of standardisation: the Eta series is based on an elaborate selection chart featuring a large range of sizes, flow rates and heads. This selection chart serves to determine the best pump with optimum efficiency for you: Your individual KSB Eta. In other words, Eta turns tailor-made into standard.
* If you have requested special components for configured Eta pumps (especially bought-in components such as motors) that we do not stock as standard, it may take longer.
What makes Eta so unique and successful?
Original spare parts: ordered today, on its way to you tomorrow
“KSB’s Eta is everybody’s Eta.” Find out where Eta is part of your life.
Technical details on our Eta type series are available in our product catalogue.
Etanorm
Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etaline
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etabloc
Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etachrom B
Horizontal single-stage close-coupled circular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etaprime B
Horizontal self-priming volute casing pump, single-stage, with open multi-vane impeller, close-coupled; pump shaft and motor shaft rigidly connected; ATEX-compliant version available.
Etaseco/ Etaseco-I
Horizontal or vertical seal-less volute casing pump in back pull-out design with fully enclosed canned motor, low noise emission, with radial impeller, single-stage, single-entry, casing connecting dimensions to EN 733, or in in-line design.
Success stories surrounding the Eta family
Natural partners are best purchased together
Increase your system’s efficiency and availability with products and solutions that are perfectly matched to each other.
