BOA-Control DPR Globe valve

Globe valve BOA-Control DPR

Differential pressure control valve / proportional control valve for the constant control of an adjustable differential pressure setpoint without auxiliary energy, with threaded ends (DN 15 - 50) or flanged ends (DN 65 - 100). Setpoint can be adjusted continuously and read from the outside at any time. The valve closes automatically with rising pressure. Includes quick-measurement ports for measuring pressure loss. Available in various pressure control ranges (LP/HP) from 5 to 80 kPa (threaded ends) and from 80 to 160 kPa (flanged ends).
See all documents and downloads

Main Applications

  • Hot-water heating systems
  • Air-conditioning systems
  • Cooling circuits

Technical Data

Nominal pressure
PN 16, PN 25
Max. nominal size
DN 100
Maximum allowable fluid temperature
120 °C
BOA-Control DPR – features and function

The dream team for hydraulic balancing: BOA-Control DPR with BOA-Control SBV

Dynamic zoning of your system into pressure-independent sections is a breeze with the continuously adjustable BOA-Control DPR differential pressure regulator, and so is hydraulic balancing. A great partner valve is the BOA-Control SBV balancing and measurement valve. Optimise your energy consumption, ensure demand-driven distribution and reduce flow noises.

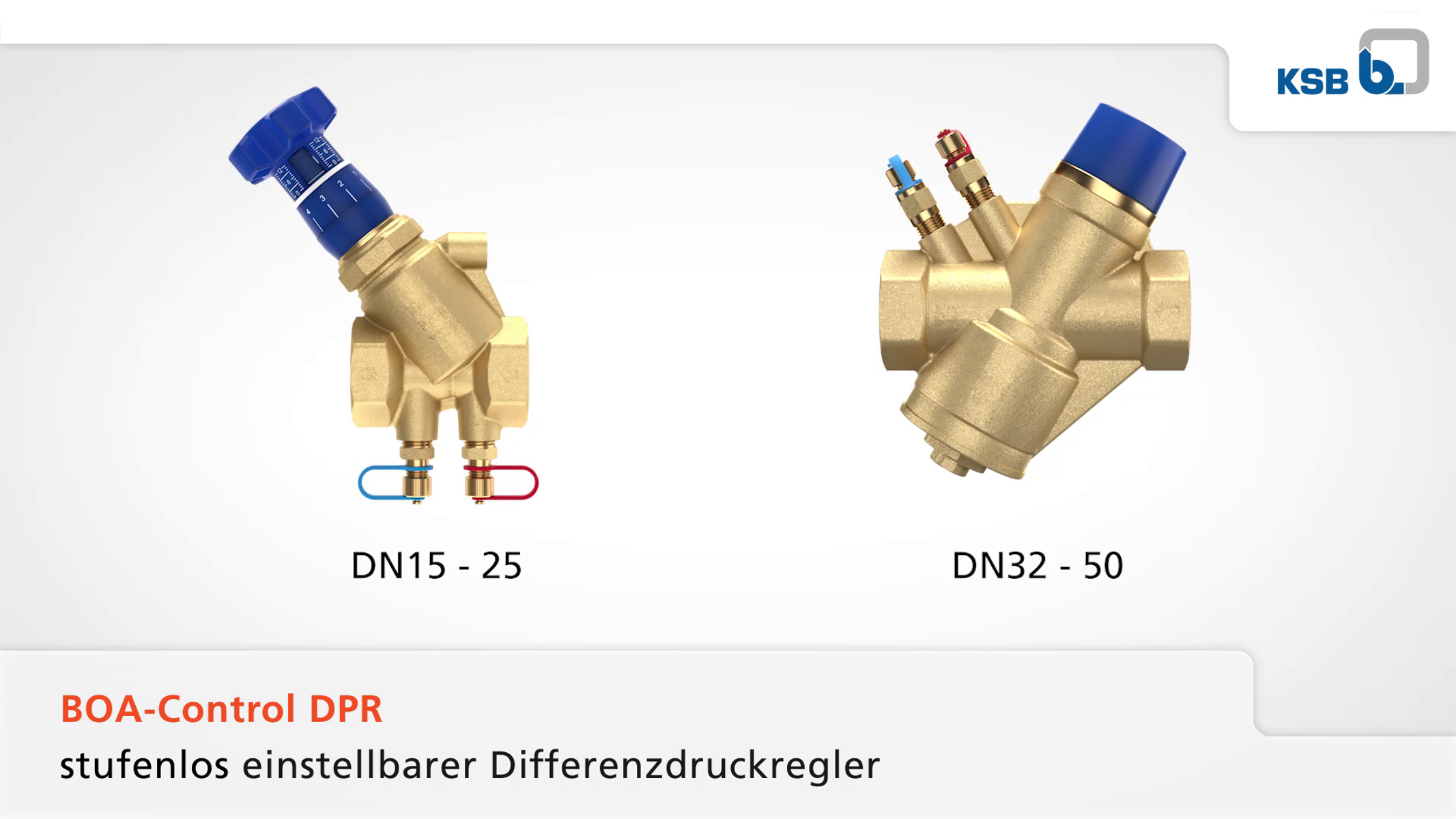

Watch the product video for further details.

The dream team for hydraulic balancing: BOA-Control DPR with BOA-Control SBV

Dynamic zoning of your system into pressure-independent sections is a breeze with the continuously adjustable BOA-Control DPR differential pressure regulator, and so is hydraulic balancing. A great partner valve is the BOA-Control SBV balancing and measurement valve. Optimise your energy consumption, ensure demand-driven distribution and reduce flow noises.

Watch the product video for further details.

Material number list – BOA-Control DPR

15 products
Material number
Price
BOA-CONTROL DPR PN 16 DN 32 (G 1 1/4)1.625 kg48016919
Loading...
BOA-CONTROL DPR PN 16 DN 40 (G 1 1/2)2.475 kg48016920
Loading...
BOA-CONTROL DPR PN 16 DN 50 (G 2)2.97 kg48016921
Loading...
BOA-CONTROL DPR PN 16 DN 65 HP21.7 kg48016923
Loading...
BOA-CONTROL DPR PN 16 DN 65 LP21.7 kg48016922
Loading...

Benefits

  • Materials suitable for all applications in heating or cooling systems
  • Pre-defined valve position facilitates easy flushing (DN 15-50).
  • Shut-off function provides tight shut-off (DN 15-25).

Technical Data

Function
Shut off/control flow
Connection type
Internal-thread connection,
Flange
Design concept Drive
With handwheel
Casing material
EN-GJL-250,
CW602N
Nominal pressure
PN 16,
PN 25
Max. nominal size
DN 100
Min. nominal size
DN 15
Maximum allowable fluid temperature
120 °C
Minimum allowable fluid temperature
-10 °C
