BOA-Control SBV Globe valve

Globe valve BOA-Control SBV

Maintenance-free balancing and measurement valve with female threaded ends, Y-pattern, continuous presetting, with position indicator readable from all angles (360°). Includes travel stop and 2 measurement ports with fixed measuring orifice (tolerance +/- 5 %) for measuring pressure, differential pressure and flow. Minimum space requirements thanks to non-rising handwheel and all functional parts being positioned on the same side as the handwheel.
See all documents and downloads

Main Applications

  • Hot-water heating systems
  • Air-conditioning systems
  • Cooling circuits

Technical Data

Nominal pressure
PN 25
Max. nominal size
DN 50
Maximum allowable fluid temperature
120 °C

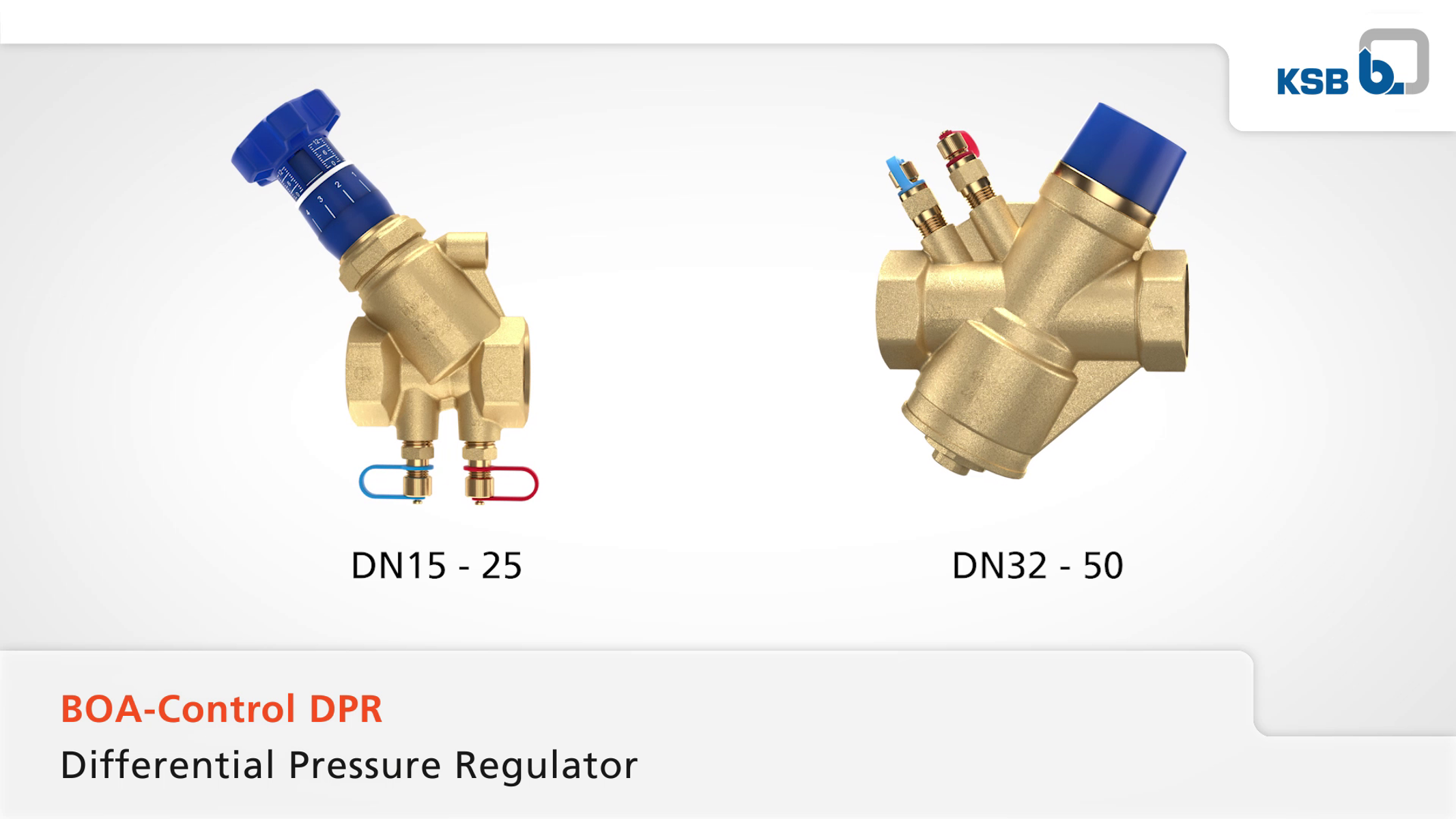

BOA-Control DPR – features and function

The dream team for hydraulic balancing: BOA-Control DPR with BOA-Control SBV

Dynamic zoning of your system into pressure-independent sections is a breeze with the continuously adjustable BOA-Control DPR differential pressure regulator, and so is hydraulic balancing. A great partner valve is the BOA-Control SBV balancing and measurement valve. Optimise your energy consumption, ensure demand-driven distribution and reduce flow noises.

Watch the product video for further details.

The dream team for hydraulic balancing: BOA-Control DPR with BOA-Control SBV

Dynamic zoning of your system into pressure-independent sections is a breeze with the continuously adjustable BOA-Control DPR differential pressure regulator, and so is hydraulic balancing. A great partner valve is the BOA-Control SBV balancing and measurement valve. Optimise your energy consumption, ensure demand-driven distribution and reduce flow noises.

Watch the product video for further details.

Material number list – BOA-Control SBV

6 products
Material number
Price
BOA-CONTROL SBV PN 25 DN 15 (G 1/2)0.375 kg48016907
Loading...
BOA-CONTROL SBV PN 25 DN 20 (G 3/4)0.43 kg48016908
Loading...
BOA-CONTROL SBV PN 25 DN 25 (G 1)0.515 kg48016909
Loading...
BOA-CONTROL SBV PN 25 DN 32 (G1 1/4)0.86 kg48016910
Loading...
BOA-CONTROL SBV PN 25 DN 40 (G1 1/2)1.34 kg48016911
Loading...

Benefits

  • The flow rate can be precisely adjusted and read from all angles as the scale on the handwheel is printed on all sides.
  • Materials suitable for all applications in heating or cooling systems
  • Suitable as a partner valve for differential pressure regulators by connecting a capillary tube

Technical Data

Function
Shut off/control flow
Connection type
Internal-thread connection
Design concept Drive
With handwheel
Casing material
CW602N
Nominal pressure
PN 25
Max. nominal size
DN 50
Min. nominal size
DN 15
Maximum allowable fluid temperature
120 °C
Minimum allowable fluid temperature
-10 °C
