KSB's sprinkler installations to VDS and FM for reliable fire protection

KSB's Hya 2 D FL family can always be relied on in the event of a fire.

When effective fire protection using wall and external hydrants is required, compromises are not an option. With its fire-fighting stations of the type HyaSolo 2 D FL and HyaDuo 2 D FL , KSB offers fully automatic, reliable single-pump and dual-pump systems for fast and effective protection in the event of a fire. All fire-fighting systems of the KSB Hya 2 D FL family meet the stringent DIN 14462 requirements for hydrant fire-fighting systems. The models of the HyaDuo 2 D FL systems offer additional safety with a redundant control system per pump.

KSB break tank package booster sets for fire fighting protect people and material.

 HyaSolo 2 D FLHyaSolo 2 D FL CompactHyaDuo 2 D FL HyaDuo 2 D FL Compact
Flow rate Qmax≤ 110 m³/h≤ 36 m³/h≤ 110 m³/h≤ 36 m³/h
Head Hmax≤ 160 m≤ 160 m≤ 160 m≤ 160 m
Number of pumps1122
Redundant control system per pumpNoNoYesYes
Wired inlet tankNoneIncl.  NoneIncl.



Note: To prevent microbial contamination of the public water supply system by fire-fighting water, fire-fighting systems must be separated from the water supply system by suitable means, e.g. break tanks. In the event of a fire, water will automatically continue to be supplied as required. Such equipment must be designed to prevent microbial contamination during water supply or when tanks are overfilled. Fire-fighting pumps must exclusively be used for fire-fighting and not for maintaining the pressure of the fire-fighting system, for example, or as drainage pumps for overflowing tanks.

HyaSolo 2 D FL

HyaSolo 2 D FL

Fully-automatic and ready-to-connect single-pump system for fire-fighting applications to DIN 14462:2023-07, in modular design. The system is started and stopped as a function of pressure. The system is monitored for lack of water to protect the pumps against dry running. A functional check run is carried out daily to ensure reliable pump operation.

HyaSolo 2 D FL Compact

HyaSolo 2 D FL Compact

Compact, fully automatic and ready-to-connect break tank package booster set for fire-fighting applications to DIN 14462:2023-07, modular design, comprising a single-pump system and a break tank for the hygienic separation of drinking water and fire-fighting water, mounted on the same base frame. The system is started and stopped as a function of pressure. The system is monitored for lack of water to protect the pumps against dry running. A functional check run is carried out daily to ensure reliable pump operation.

HyaDuo 2 D FL

HyaDuo 2 D FL

Fully automatic and ready-to-connect fire-fighting system for fire-fighting applications to DIN 14462:2023-07, modular design, comprising a dual-pump system with redundant function, mounted on the same baseplate. The system is started and stopped as a function of pressure. The system is monitored for lack of water to protect the pumps against dry running. A functional check run is carried out daily to ensure reliable pump operation.

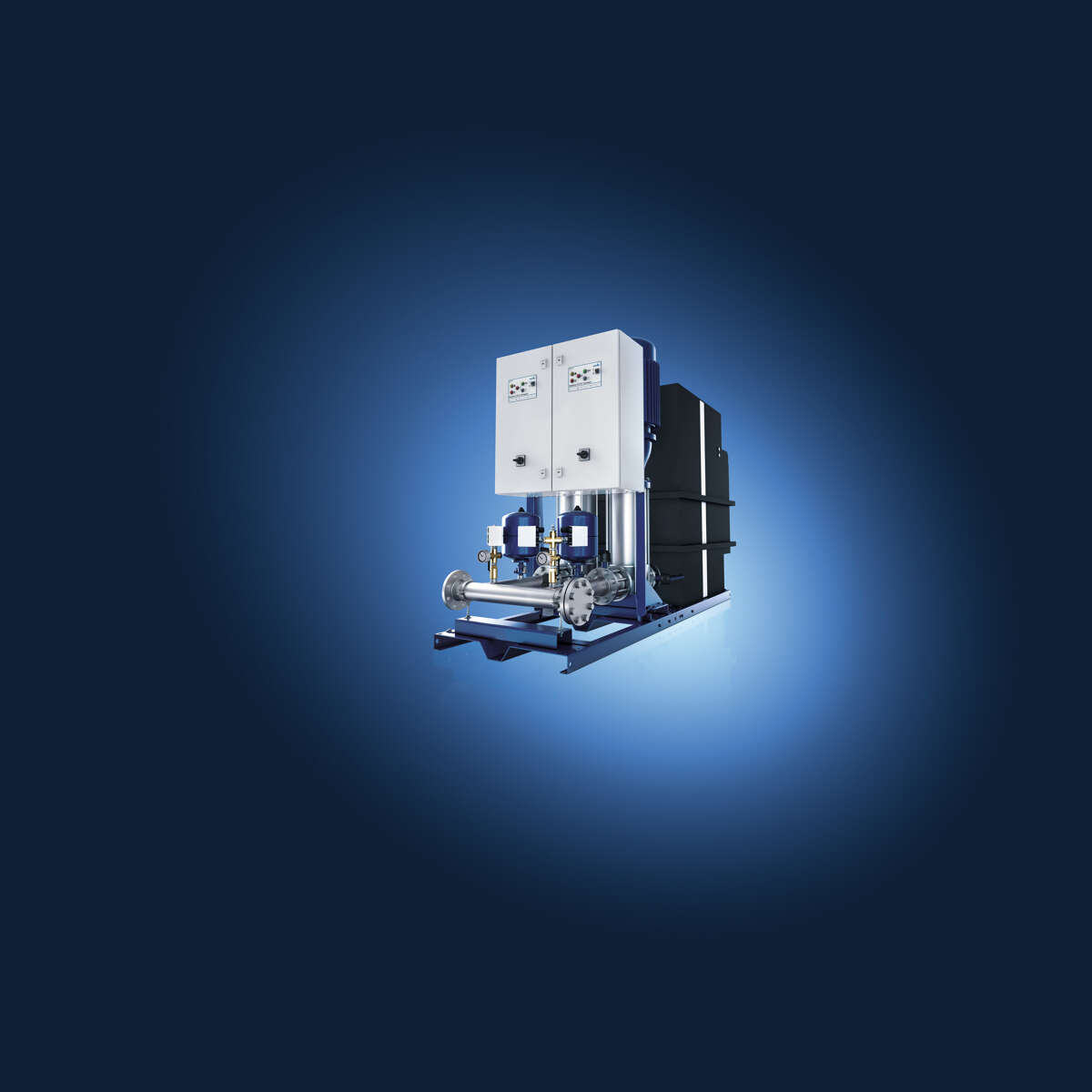

HyaDuo 2 D FL Compact

HyaDuo 2 D FL Compact

Compact, fully automatic and ready-to-connect break tank package booster set for fire-fighting applications to DIN 14462:2023-07, modular design, comprising a dual-pump system with redundant function and a break tank for the hygienic separation of drinking water and fire-fighting water, mounted on separable base frames. The system is started and stopped as a function of pressure. The system is monitored for lack of water to protect the pumps against dry running. A functional check run is carried out daily to ensure reliable pump operation.
