Main Applications
- Waste water management
- Service water supply systems
- Disposal
- Waste water treatment plants
Technical Data
- Max. flow rate
- 10080 m3/h
- Max. head
- 120 m
- Max. allowed working pressure
- 12 bar
- Maximum allowable fluid temperature
- 60 °C

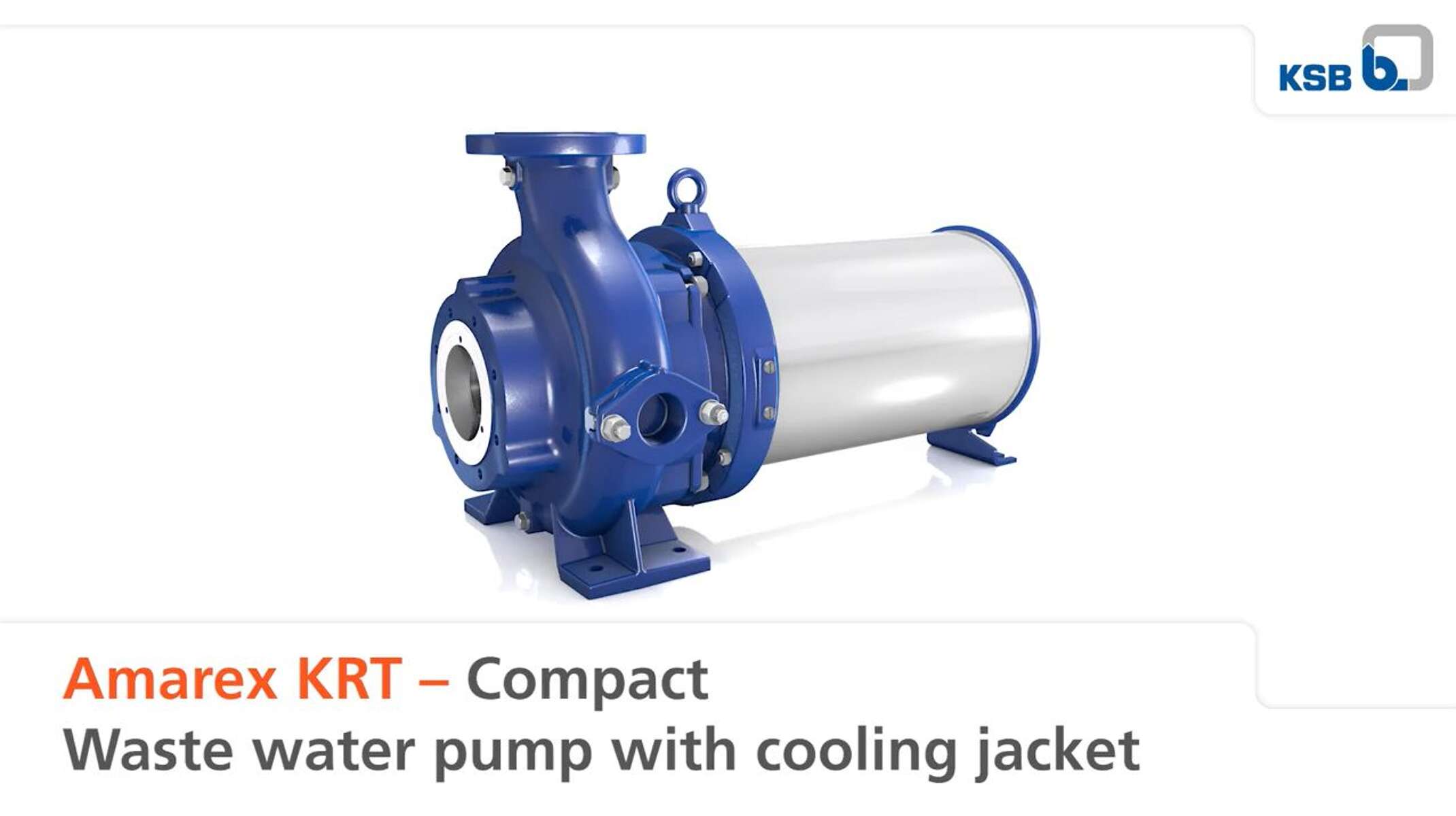

Amarex KRT with cooling jacket
The KSB Amarex KRT range of waste water pumps featuring jacket-cooled drives. They are designed to transport untreated waste water in municipal and industrial waste water management. The new pump sets are available with drive ratings of 10–30 kW and are suitable for vertical or horizontal dry installationThe pump sets meet all explosion protection requirements set out in the ATEX, FM and CSA standards.
Amarex KRT with cooling jacket
The KSB Amarex KRT range of waste water pumps featuring jacket-cooled drives. They are designed to transport untreated waste water in municipal and industrial waste water management. The new pump sets are available with drive ratings of 10–30 kW and are suitable for vertical or horizontal dry installationThe pump sets meet all explosion protection requirements set out in the ATEX, FM and CSA standards.
Technical Data
- Function
- Pump
- Connection type
- Flange
- Drive concept
- With electric actuator
- Max. flow rate
- 10080 m3/h
- Min. flow rate
- 0.1 m3/h
- Max. head
- 120 m
- Min. head
- 0.1 m
- Mains frequency
- 50 Hz,
60 Hz - Mains voltage
- 200 V,
208 V,
220 V,
230 V,
240 V,
380 V,
400 V,
415 V,
440 V,
460 V,
480 V,
500 V,
525 V,
575 V,
600 V,
660 V,
690 V - Casing material
- EN-GJL-250,
EN-GJS-500-7,
EN-GJN-HB555(XCR14),
1.4517 - Nominal pressure
- PN 10,
PN 16,
CL 125,
CL 150 - Max. allowed working pressure
- 12 bar
- Suction behaviour
- Non-self-priming
- Maximum allowable fluid temperature
- 60 °C
- Minimum allowable fluid temperature
- 0 °C
