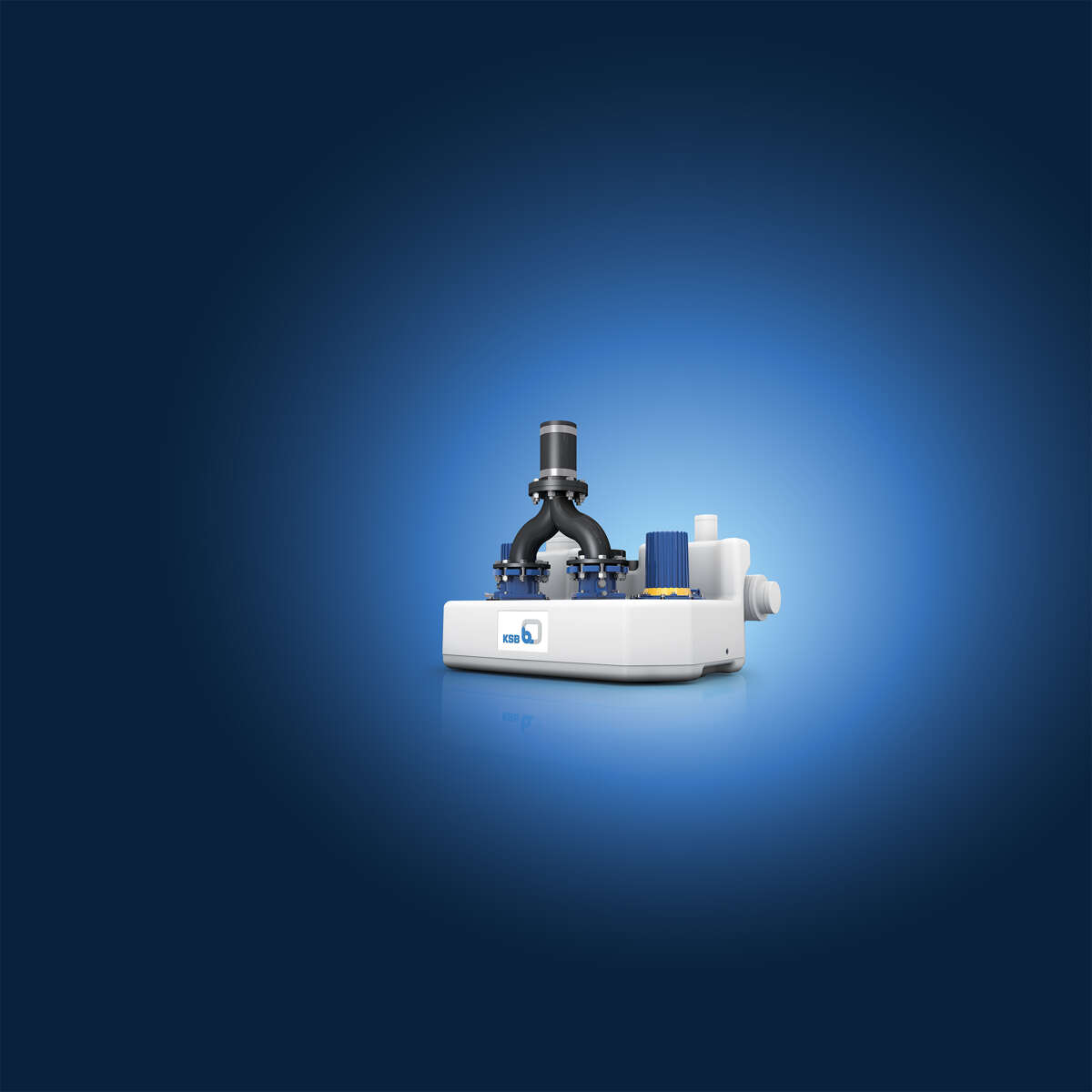

AmaDrainer Box, Compacta and MiniCompacta lifting units for domestic drainage

Waste water with or without faeces: KSB lifting units always give 100 %.

Whether you are looking for a lifting unit for safe backflow protection or for reliable drainage below the flood level: We offer a broad range of suitable waste water lifting units, from plug-in solutions for single-family houses to dual-pump systems for larger building complexes. With our powerful and diverse portfolio we cover all applications for domestic drainage of waste water with or without faeces.

A comparison of our lifting units for grey water and black water


AmaDrainer Box MiniAmaDrainer BoxMini CompactaCompacta

Type of system

Single-pump unit

Single/dual-pump unit

Single/dual-pump unit

Single/dual-pump unit

Flow rate Q

≤ 10 m³/h

≤ 35 m³/h / ≤ 46 m³/l

≤ 36 m³/h

≤ 145 m³/h

Head H

≤ 6,5 m

≤ 21 m / ≤ 24 m

≤ 25 m

≤ 24,5 m

Temperature T

≤ 50 °C

≤ 40 °C continuous duty

≤ 40 °C continuous duty

≤ 40 °C continuous duty

Power P

0,43 kW

0,25 – 0,6 kW

1,02 – 2 kW

2,74 – 5,2 kW

Effective volume V

10 l

100 l / 200 l

40, 60, 100, 150 l

100, 150, 300, 450, 900 l

Fluid handled

Without faeces

Without faeces

With faeces

With faeces

Free passage

10 mm

10, 18 or 35 mm

40, 65 mm

65, 80 mm

Installation types

Above-floor

Above-floor / underfloor

Above-floor (floodable)

Above-floor (floodable)

AmaDrainer Box/AmaDrainer Box Mini

AmaDrainer Box/AmaDrainer Box Mini
Documents

AmaDrainer Box:Stable above-floor plastic collecting tank or impact-resistant underfloor plastic collecting tank, with floor drain and odour trap, both with AmaDrainer submersible motor pump starting and stopping automatically and swing check valve AmaDrainer Box Mini:Reliable and compact grey water lifting unit in a modern design with activated carbon filter meeting hygiene requirements and with shower connection as standard; complies with EN 12050-2.

Details

MiniCompacta

MiniCompacta
Documents

Floodable single-pump sewage lifting unit or dual-pump sewage lifting unit for automatic disposal of domestic waste water and faeces in building sections below the flood level.

Details

Compacta

Compacta
Documents

Floodable single-pump sewage lifting unit or dual-pump sewage lifting unit for automatic disposal of waste water and faeces in buildings and building sections below the flood level.

Details
KSB LevelControl Basic 2: Level control unit for controlling and protecting either one or two pumps.

Reliable lifting units need reliable control systems.

Single-pump lifting units for waste water without faeces are controlled by an integrated mechanical float; dual-pump units are controlled by one of KSB's LevelControl Basic 2 control units.

Depending on the design variant, lifting units for waste water containing faeces are either fitted with LevelControl Basic 1 or 2. With their many control and connection options, the control units ensure reliable, trouble-free operation of our waste water lifting units.
