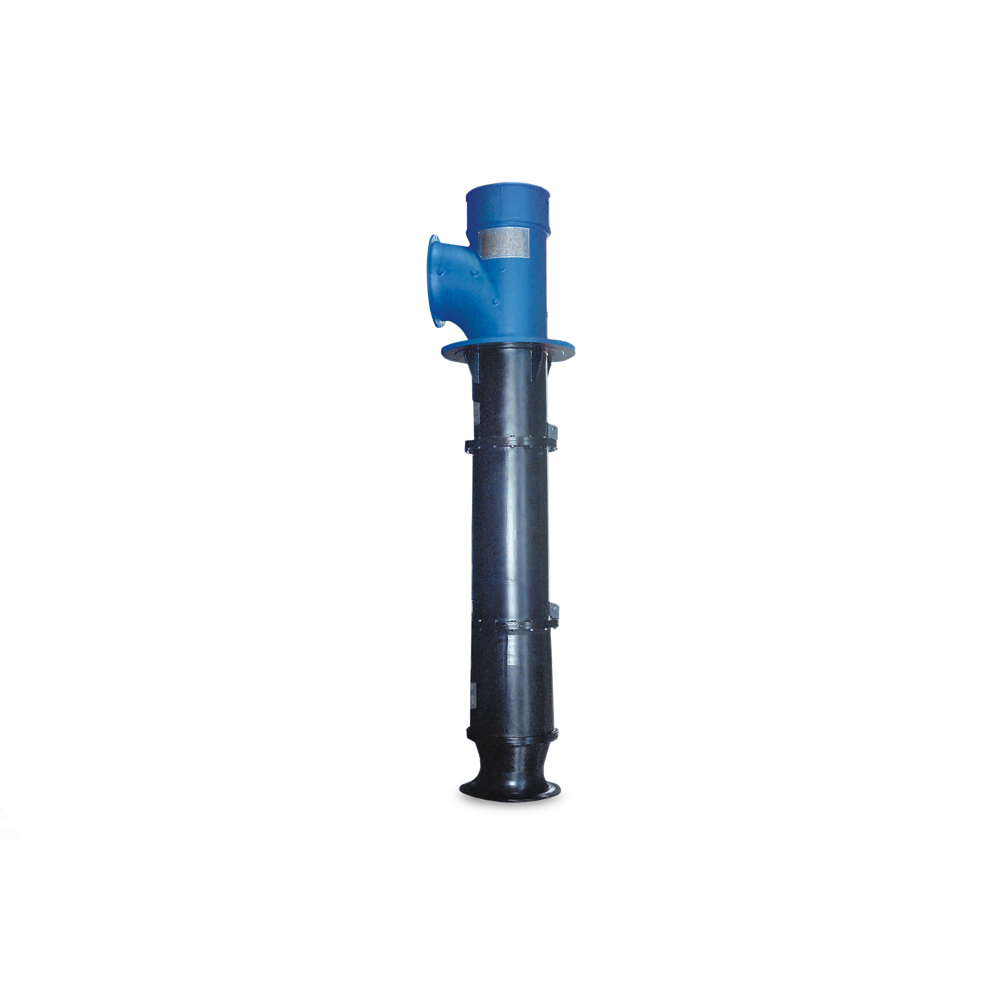

PNW Tubular casing pump

Tubular casing pump PNW

Vertical tubular casing pump with axial propeller, single-stage, with maintenance-free Residur bearings, discharge nozzle arranged above or below floor level.
See all documents and downloads

Technical Data

Max. flow rate
9000 m3/h
Max. head
10 m
Max. allowed working pressure
10 bar
Maximum allowable fluid temperature
60 °C

Your KSB contact: We’re here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Your KSB contact : We’re here to support you

Technical Data

Function
Pump
Connection type
Flange
Drive concept
With electric actuator
Max. flow rate
9000 m3/h
Min. flow rate
290 m3/h
Max. head
10 m
Min. head
0.5 m
Mains frequency
50 Hz,
60 Hz
Mains voltage
380 V,
400 V,
415 V,
440 V,
460 V,
480 V,
500 V,
525 V,
575 V,
600 V,
660 V,
690 V,
830 V,
1000 V,
3000 V,
4160 V,
5000 V,
5500 V,
6000 V,
6600 V,
11000 V
Casing material
X2CRNIMO17-12-2-S235JRG2,
X2CRNIMON22-5-3-S235JR,
X2CRNIMON25-7-4
Nominal pressure
PN 9
Max. allowed working pressure
10 bar
Suction behaviour
Non-self-priming
Maximum allowable fluid temperature
60 °C
Minimum allowable fluid temperature
5 °C
