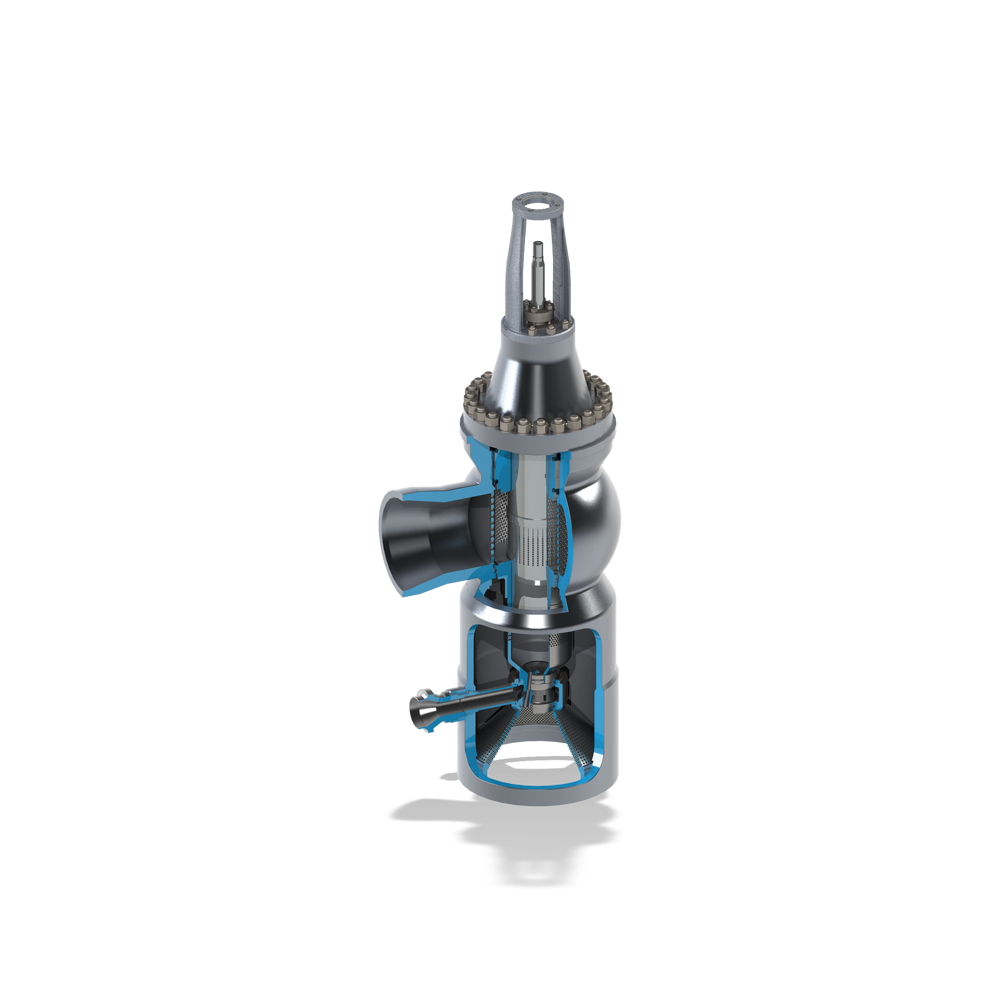

Globe valve Welland & Tuxhorn

Steam turbine

Main Applications

Energy
Boiler feed applications
Boiler recirculation
Fossil-fuelled power stations

Technical Data

Nominal pressure: CL 150, CL 250, CL 400, CL 600, CL 800, CL 1500, CL 2500, CL 4500, PN 16, PN 25, PN 40, PN 63, PN 100, PN 150, PN 160, PN 200, PN 250, PN 320, PN 400, PN 500, PN 630
Max. nominal size: DN 1600

Your KSB contact: We're here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Your local contact

Your KSB contact : We’re here to support you

Benefits

Optimum steam conversion throughout the load range with integrated motive steam nozzle
Installed silencers for low-noise and low-vibration operation
Service-friendly low cooling water pressure makes replacing interior parts easy

Technical Data

Function: Shut off/control flow
Connection type: Butt weld ends
Design concept Drive: With electric actuator,
Hydraulic,
With pneumatic actuator
Casing material: A105,
11CRMO9-10,
13 CRMO 44,
A182 GR F 12,
A182 GR F 22,
16MO3,
X10CRMOVNB9-1,
X10CRWMOVNB9-2,
UNS K90901
Nominal pressure: CL 150,
CL 250,
CL 400,
CL 600,
CL 800,
CL 1500,
CL 2500,
CL 4500,
PN 16,
PN 25,
PN 40,
PN 63,
PN 100,
PN 150,
PN 160,
PN 200,
PN 250,
PN 320,
PN 400,
PN 500,
PN 630
Max. nominal size: DN 1600
Min. nominal size: DN 25,
NPS 3
Valve body type: Angle valve with weld ends,
Straight-way valve w.weld ends
