Main Applications
- AmaDrainer Box
- Automatic drainage of buildings and premises below the flood level
- Single-pump lifting units:
- Automatic disposal of domestic grey water from washing machines, washbasins, sinks, showers or bathtubs
Technical Data
- Max. flow rate
- 46 m3/h
- Max. head
- 24 m
- Maximum allowable fluid temperature
- 40 °C
All boxed in. Zero odour.
Wherever domestic waste water cannot easily flow into the sewer system by gravity, the AmaDrainer Box provides the perfect solution. By reliably collecting and disposing of grey water, it ensures any unpleasant odours are prevented.

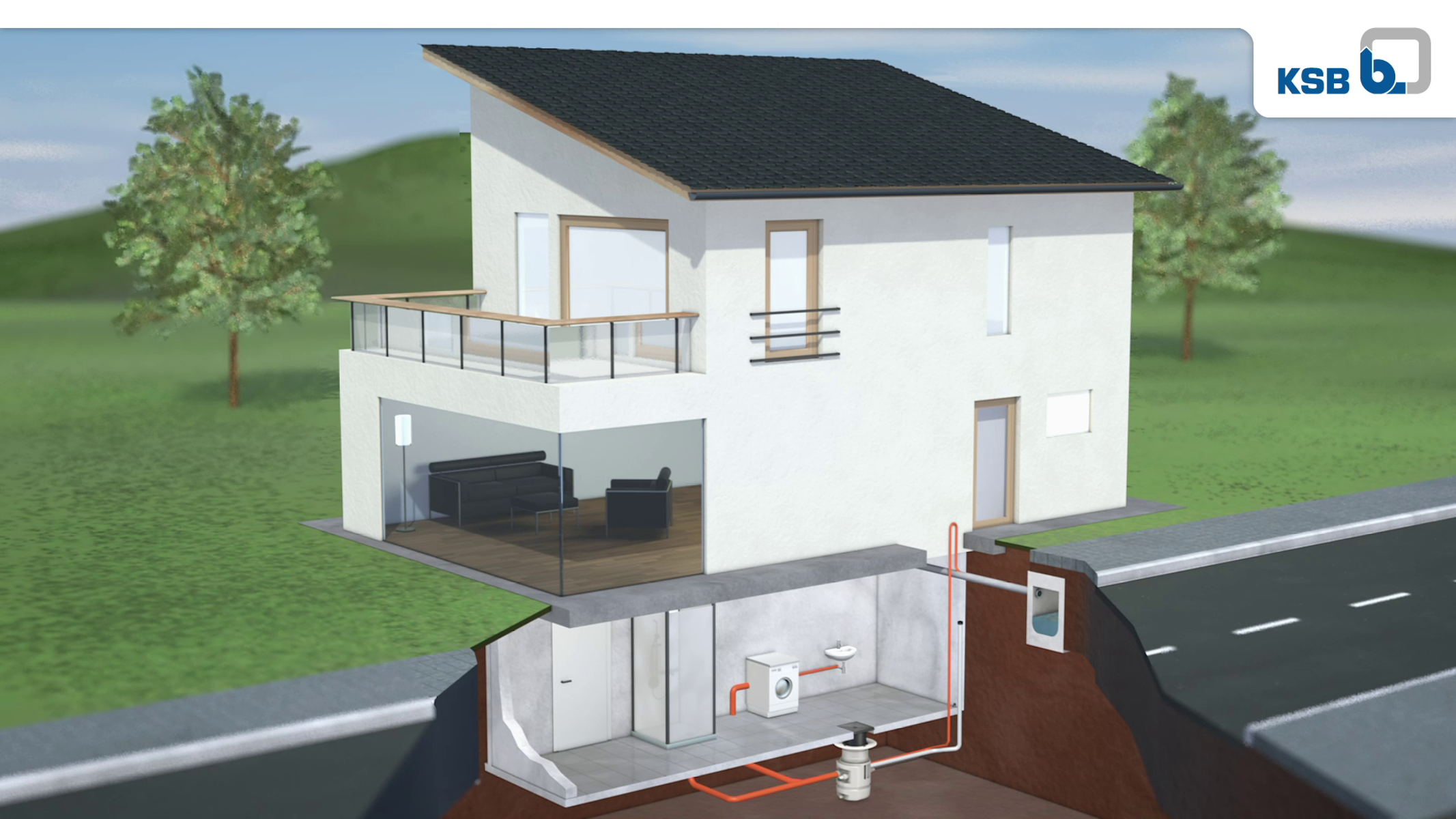

Watch our product video to see how the grey water lifting unit can be used for above-floor or underfloor installation.
All boxed in. Zero odour.
Wherever domestic waste water cannot easily flow into the sewer system by gravity, the AmaDrainer Box provides the perfect solution. By reliably collecting and disposing of grey water, it ensures any unpleasant odours are prevented.
Watch our product video to see how the grey water lifting unit can be used for above-floor or underfloor installation.
Material number list – AmaDrainer Box/AmaDrainer Box Mini
22 productsMaterial number | Price | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AmaDrainer Box 1 B 405/35 | 1 B 405/35 | 1PC | Above-floor | A | 70l | Single-phase AC | 230V | 50Hz | 23.9 kg | 29131766 | Loading... | |
| AmaDrainer Box 1 U 405/35 | 1 U 405/35 | 1PC | Underfloor | A | 70l | Single-phase AC | 230V | 50Hz | 30.9 kg | 29131757 | Loading... | |
| AmaDrainer Box 1.1 B 301 | 1 B 301 | 1PC | Above-floor | A | 70l | Single-phase AC | 230V | 50Hz | 13.3 kg | 29135149 | Loading... | |
| AmaDrainer Box 1.1 B 303 | 1 B 303 | 1PC | Above-floor | A | 70l | Single-phase AC | 230V | 50Hz | 14.5 kg | 29135151 | Loading... | |
| AmaDrainer Box 1.1 B 322 | 1 B 322 | 1PC | Above-floor | A | 70l | Single-phase AC | 230V | 50Hz | 14.5 kg | 29135153 | Loading... |
Benefits
- AmaDrainer Box
- Reliable single-pump lifting unit / dual-pump lifting unit for underfloor installation / above-floor installation for all pumps of the AmaDrainer type series
- Underfloor box U:
Certificates
Europe
Technical Data
- Connection type
- Pipe/hose connection
- Drive concept
- With electric actuator
- Max. flow rate
- 46 m3/h
- Min. flow rate
- 0.1 m3/h
- Max. head
- 24 m
- Min. head
- 1 m
- Mains frequency
- 50 Hz
- Mains voltage
- 230 V,
400 V - Suction behaviour
- Non-self-priming
- Maximum allowable fluid temperature
- 40 °C
- Minimum allowable fluid temperature
- 0 °C
