Main Applications
- Service water supply systems
- Heating systems
- Industrial recirculation systems
- Air-conditioning systems
Technical Data
- Max. flow rate
- 64 m3/h
- Max. head
- 42.9 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 120 °C
Material number list – EtaLine Pro
15 productsMaterial number | Price | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| EtaLine Pro 25-25-90 0,8kW | 25-25-90 | DN 25 | 59001/min | 0.8kW | Var speed + max impeller dia | 16 kg | 05153485 | Loading... | |
| EtaLine Pro 25-25-90 1,6kW | 25-25-90 | DN 25 | 59001/min | 1.6kW | Var speed + max impeller dia | 16 kg | 05153486 | Loading... | |
| EtaLine Pro 32-32-70 0,8kW | 32-32-70 | DN 32 | 60001/min | 0.8kW | Var speed + max impeller dia | 19 kg | 05153487 | Loading... | |
| EtaLine Pro 32-32-70 1,6kW | 32-32-70 | DN 32 | 60001/min | 1.6kW | Var speed + max impeller dia | 19 kg | 05153488 | Loading... | |
| EtaLine Pro 40-40-90 0,8kW | 40-40-90 | DN 40 | 35001/min | 0.8kW | Var speed + max impeller dia | 21.2 kg | 05153481 | Loading... |
Benefits
- Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
- Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
- Casing sealed reliably – even in varying operating conditions – by confined casing gasket
From pro to pro: tips and tricks for EtaLine Pro

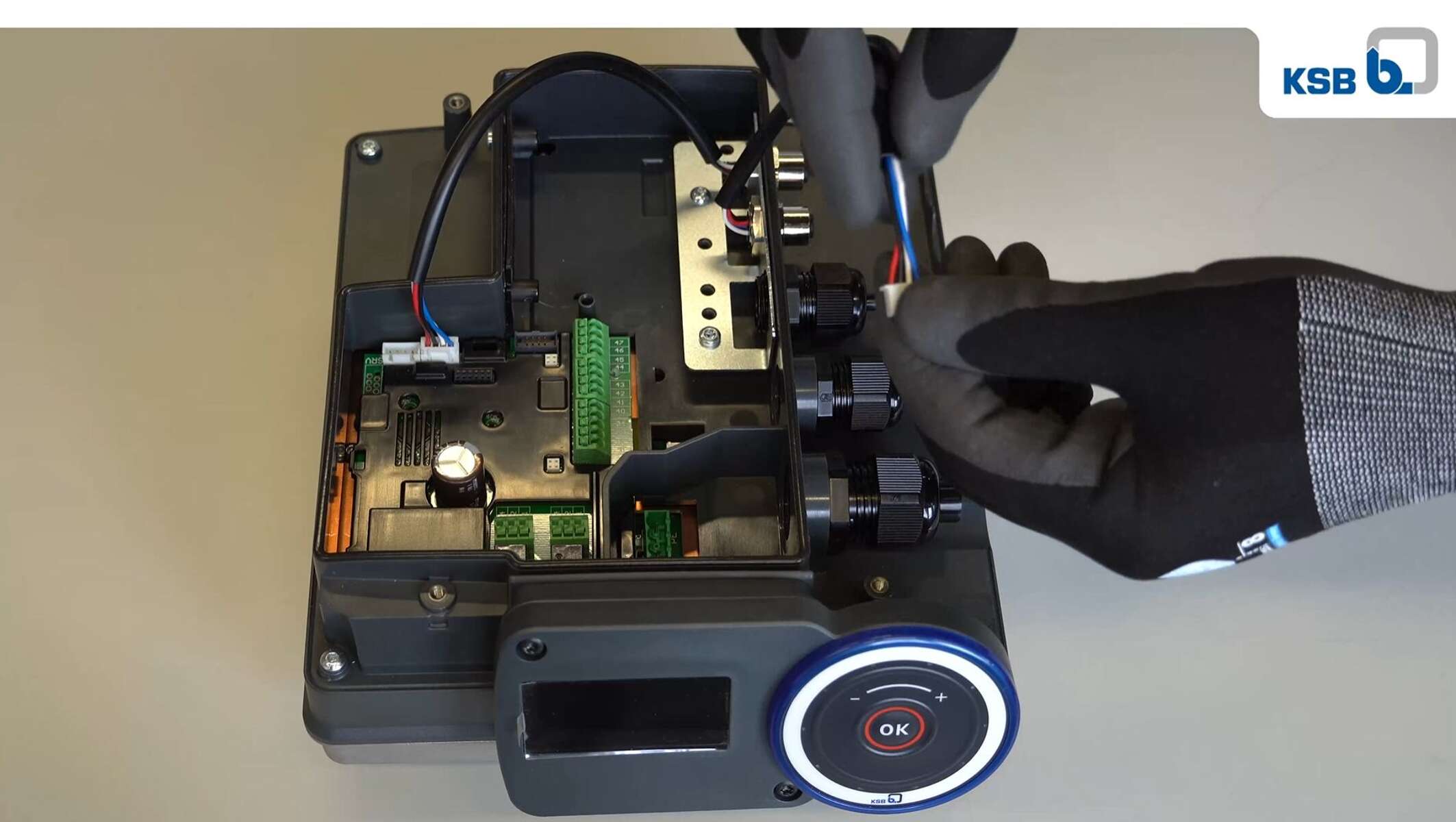

Install accessories for multi-pump operation

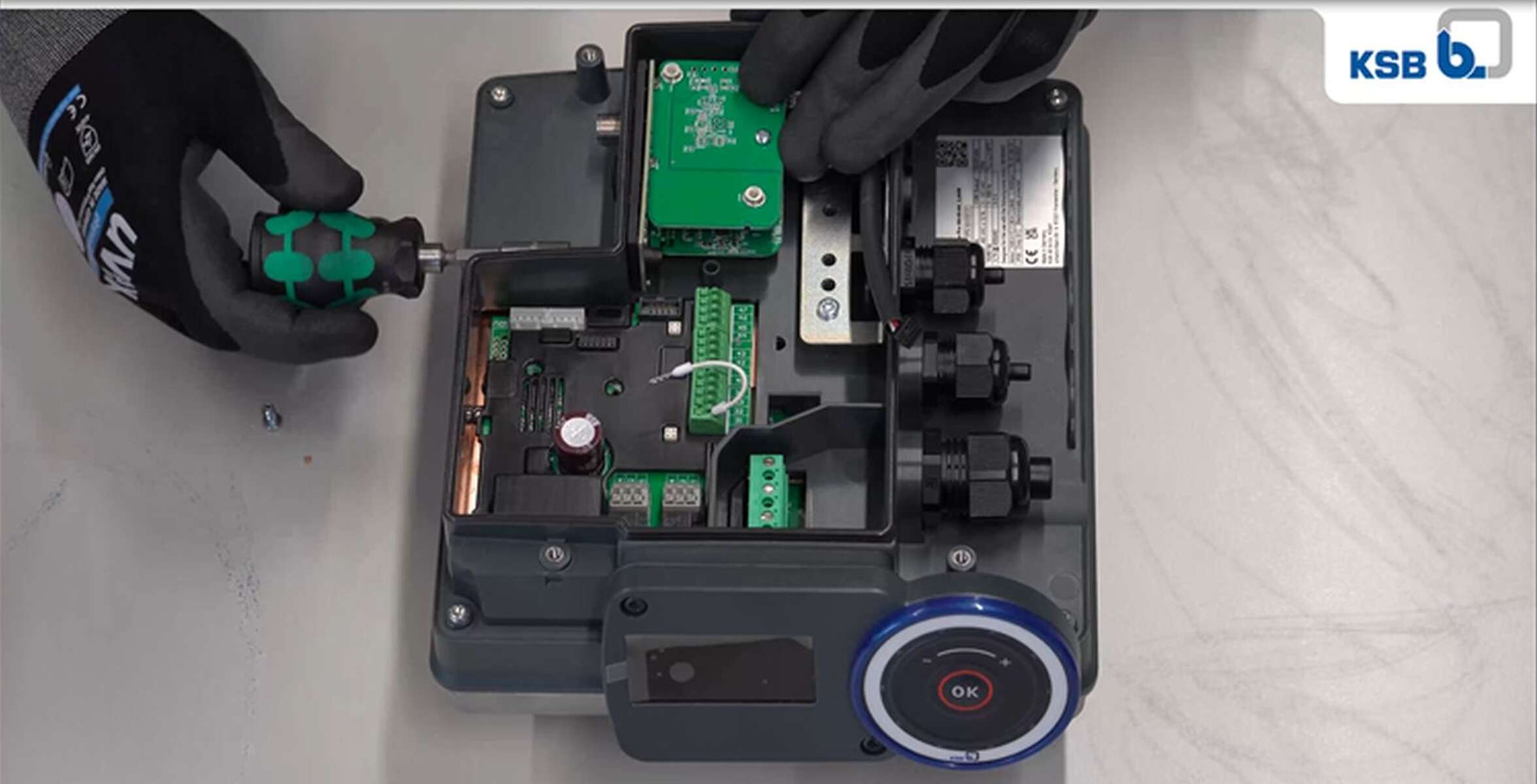

Assembly fieldbus module - Example Modbus RTU
Technical Data
- Function
- Pump
- Connection type
- Flange
- Drive concept
- With electric actuator
- Max. flow rate
- 64 m3/h
- Min. flow rate
- 0.1 m3/h
- Max. head
- 42.9 m
- Min. head
- 3 m
- Mains frequency
- 50 Hz,
60 Hz - Mains voltage
- 380 V,
400 V,
415 V,
440 V,
460 V,
480 V - Casing material
- 5.1301+KATAPHORESE
- Nominal pressure
- PN 10
- Max. allowed working pressure
- 10 bar
- Suction behaviour
- Non-self-priming
- Maximum allowable fluid temperature
- 120 °C
- Minimum allowable fluid temperature
- -20 °C
