Biomass power plant excellence: KSB solutions for efficient biomass power generation
Electricity and heat from natural waste: KSB solutions for biomass power plants
Rely on a strong and professional partner for biomass energy solutions: With KSB, you benefit from valuable synergies resulting from our wide product portfolio and decades of experience in the development and production of biomass components – ensuring that your biomass power plant runs safely and efficiently.

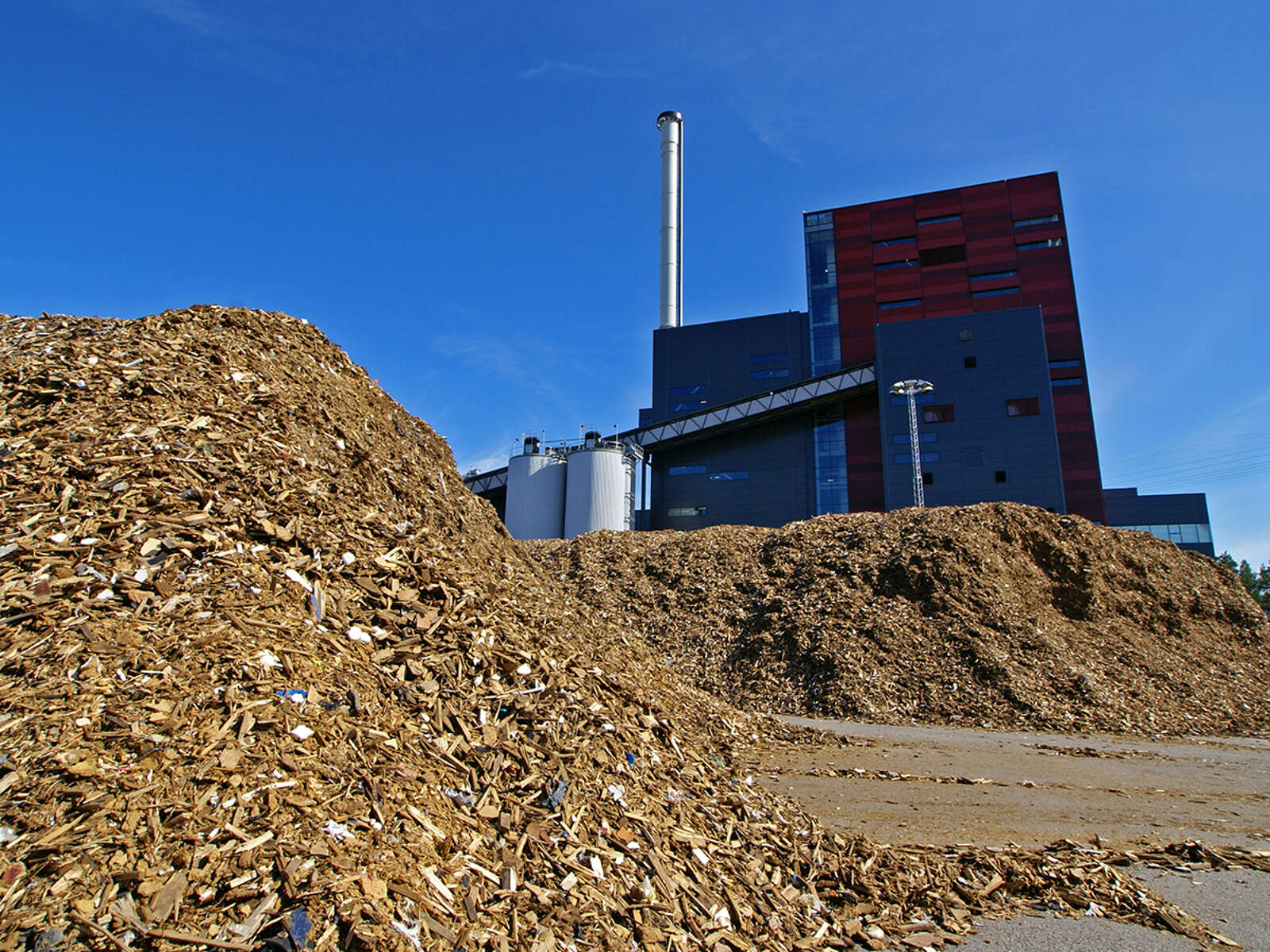

Biomass power plants convert natural waste into sustainable energy.
Wherever a large amount of biomass is generated, such as plant and animal waste or residual wood, it can be used in biomass power plants (for electricity generation) or biomass heating power plants (for combined heat and power generation).
The most crucial aspect of running a biomass power plant, is ensuring not just reliability but also long-term cost efficiency. For biomass energy solutions that convert biomass to power, components not only need to satisfy the highest technological standards, they also have to offer competitive life cycle costs. KSB meets these needs by supplying pumps and valves that excel both technically and economically.
For comprehensive biomass to power operations, KSB provides all the necessary fluid handling components from a single source, including BFWP, CEP, CWP, GSP and auxiliary pumps, streamlining the function of biomass power plants.
Our pumps and valves are designed based on mature and proven technology, ensuring safe and efficient operations in biomass power plants around the globe. Thanks to our extensive worldwide manufacturing network, KSB is ideally positioned to reduce delivery times, offering you quick access to our expertly engineered products.
For secondary processes, power plant operators can often use KSB standard components produced in large quantities, which further reduces purchasing costs and delivery times – both for initial equipment and during ongoing maintenance and upkeep.
KSB-solutions for biomass combustion
Find reliable pumps for biomass power plants
Whether it's a biomass power plant or a biomass heating power plant, KSB offers reliable pumps and valves for all primary and secondary processes in your facility.
HGM/HGM-S
Horizontal radially split product-lubricated multistage ring-section pump with radial impellers, axial and radial single-entry inlet.
HG
Horizontal radially split ring-section pump with radial impellers, single-entry or double-entry, multistage.
MegaCPK
Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to DIN EN ISO 5199, dimensions to DIN EN ISO 2858, complemented by nominal diameters DN25 and ≥DN200, in large range of material and seal variants; also available as a variant with "wet" shaft and conical seal chamber. ATEX-compliant version available.
Movitec
Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Multitec
Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.
Omega
Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.
RDLO
Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.
Find reliable valves for biomass power plants
STAAL 40 AKD/AKDS
Gate valve to DIN/EN with flanged ends (AKD) or butt weld ends (AKDS), with bolted bonnet, body of forged or welded construction, non-rotating stem, split wedge with flexibly mounted discs for precise alignment with the body seats. Seat/disc interface made of wear and corrosion resistant 17 % chrome steel.
STAAL 100 AKD/AKDS
Gate valve to DIN/EN with flanged ends (AKD) or butt weld ends (AKDS), with bolted bonnet, body of forged or welded construction, non-rotating stem, split wedge with flexibly mounted discs for precise alignment with the body seats. Seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
NORI 40 ZXL/ZXS
Globe valve to DIN/EN with flanged ends (ZXL), butt weld ends or socket weld ends (ZXS), with gland packing, with on/off disc or throttling plug, rotating stem, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
NORI 40 ZXLB/ZXSB
Bellows-type globe valve to DIN/EN with flanged ends (ZXLB), butt weld ends or socket weld ends (ZXSB), replaceable tapered on/off disc or throttling plug, two-piece stem, integrated position indicator, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
NORI 160 ZXLF/ZXSF
Globe valve to DIN/EN with flanged ends (ZXLF), butt weld ends or socket weld ends (ZXSF), with gland packing, with on/off disc or throttling plug, non-rotating stem, integrated position indicator, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
NORI 160 RXL/RXS
Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS), check disc with closing spring, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
BOA-H
Bellows-type globe valve to DIN/EN with flanged ends, with on/off disc or throttling plug, standard position indicator with colour coding for identification of valve design, replaceable valve disc; bellows protected when valve is in fully open position; seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
